INFINEON IPW65R145CFD7AXKSA1 High Voltage Power MOSFET
The 650V CoolMOS CFD7A power MOSFET is designed for high-reliability automotive applications, featuring an integrated fast body diode and optimized for PFC and resonant switching circuits like LLC. It offers ultra-low Qr, excellent avalanche ruggedness, and high efficiency at elevated voltages up to 475V. Suitable for unidirectional and bidirectional DC-DC converters and on-board battery chargers, this device ensures robust performance, enhanced switching characteristics, and increased robustness in demanding environments.
INFINEON IPW65R145CFD7AXKSA1 High Voltage Power MOSFET Specifications:
- Drain-source voltage Vos: 650 V
- Maximum continuous drain current Io: 65 A
- Pulsed drain current Ip,pulse: 72 A
- Avalanche energy Ens: 85 mJ
- Avalanche current Iasi: 41 A
- Gate threshold voltage Vgs(th): 3.5 - 4.5 V
- Gate-source leakage Ioss: 1 A
- Drain-source on-resistance Ros(on): 0.271 Ω
- Gate charge total Qg: 36 nC
- Body diode reverse recovery time te: 0.404 μs
- Operating junction temperature Tj: -40°C to 150°C
- Thermal resistance, junction-to-case Ric: 1.27°C/W
- Maximum storage temperature Tstg: -55°C to 150°C
- Maximum power dissipation: 98 W
- Temperature rating: -55°C to +150°C
- Mounting torque: 60 N·cm
- Package: PG-T0247-3 (SJ Power Device, PG-TO247-3)
- Soldering temperature: Max 260°C at leads (Wave soldering)
- RoHS compliant

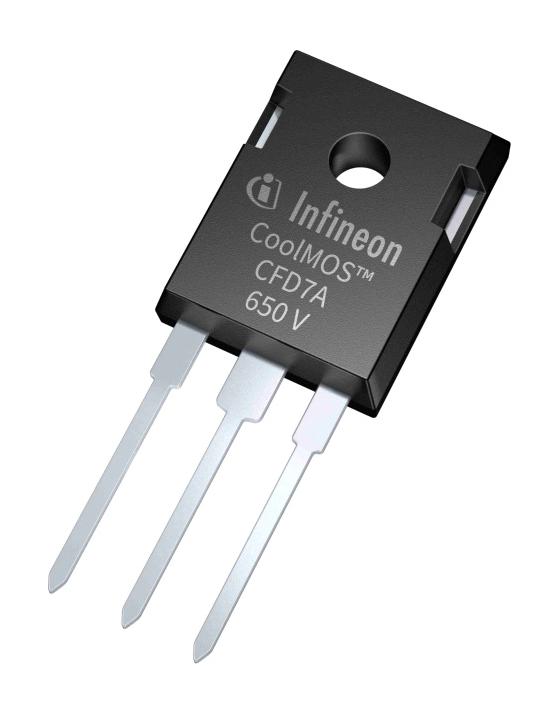

Buy the Buy Infineon High Voltage MOSFET Part Number IPW65R145CFD7A Online
Secure your automotive power conversion projects with the Infineon 650V CoolMOS CFD7A MOSFET. Designed for high reliability, it features an integrated fast body diode, ultra-low Qr, and excellent avalanche ruggedness. Its optimized design enables higher efficiency in PFC and resonant circuits like LLC and ZVS full-bridge converters. Suitable for unidirectional and bidirectional DC-DC converters, on-board chargers, and demanding industrial applications, this device ensures robust operation, lower switching losses, and enhanced thermal performance for demanding power systems.
Buy Infineon IPW65R145CFD7A now and experience unmatched reliability and high efficiency in automotive switching applications.
Frequently Asked Questions
Where can I buy INFINEON IPW65R145CFD7AXKSA1?
You can click on the BUY or RFQ button to purchase IPW65R145CFD7AXKSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPW65R145CFD7AXKSA1?
You can download the IPW65R145CFD7AXKSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPW65R145CFD7AXKSA1?
INFINEON
