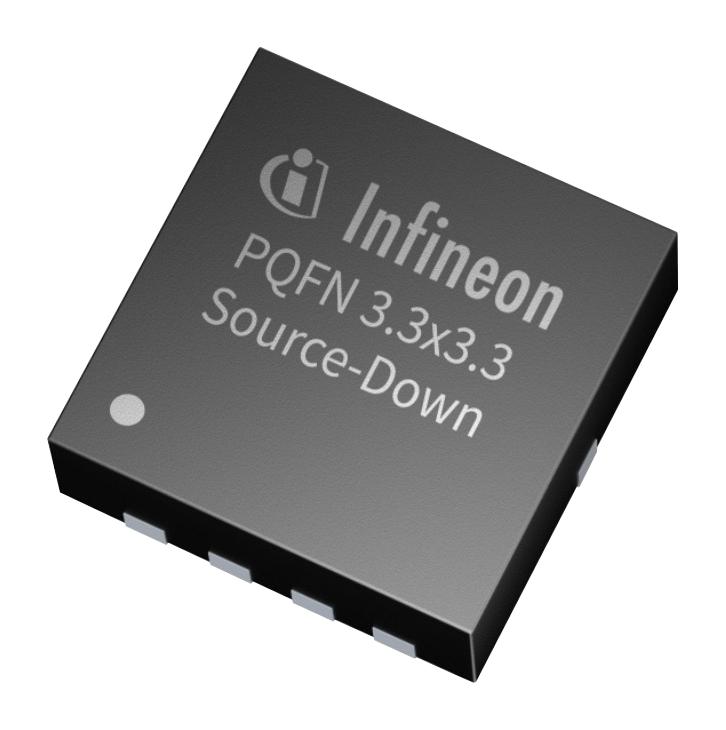

INFINEON IQE013N04LM6ATMA1 Power MOSFET
The Infineon OptiMOS™ Power-MOSFET for 40 V applications offers low R_DS(on), high current capabilities up to 205 A, and excellent thermal performance, making it ideal for synchronous rectification and power switching in industrial and consumer electronics. Fully qualified according to JEDEC standards, it features a Pb-free, halogen-free design, and is optimized for high-efficiency power management with avalanche tested reliability. Suitable for high-speed switching, this N-channel logic level device ensures dependable operation in demanding environment conditions. Perfect for a broad range of industrial power applications requiring robust performance and safety compliance.
INFINEON IQE013N04LM6ATMA1 Power MOSFET Specifications:
- Drain-source breakdown voltage: 40 V
- Continuous drain current: 205 A
- Maximum drain-source on-resistance: 135 mΩ at Vgs=10 V
- Gate threshold voltage: 1.2 to 2.0 V
- Gate source voltage: -20 V to 20 V
- Avalanche current: 50 A
- Pulsed drain current: 820 A
- Power dissipation: 25 W
- Operating temperature range: -55°C to 175°C
- Thermal resistance junction to case: 1.4 K/W
- Device mounted on PCB with 6 cm² copper area
- Fully qualified per JEDEC standards for industrial use
- Low gate charge and capacitance for high-speed switching
- RoHS compliant, halogen-free, Pb-free lead plating
- Designed for high efficiency power switching
Buy the Infineon IQE013N04LM6 – Reliable Power MOSFET for Industrial Applications
Upgrade your power electronics with the Infineon Power MOSFET offering 40 V and 205 A current capacity. Designed for high efficiency, low R_DS(on), and thermal reliability, this device ensures optimal performance in industrial power switching and synchronous rectification. Fully qualified to JEDEC standards, it features a Pb-free and halogen-free construction, helping you meet environmental standards while maintaining high reliability and safety. Perfect for demanding industrial, consumer, and automation applications requiring robust and efficient power control.
Order your Infineon Series IQE013N04LM6 high-current MOSFET today and enhance your power management solutions with dependable, efficient performance.
