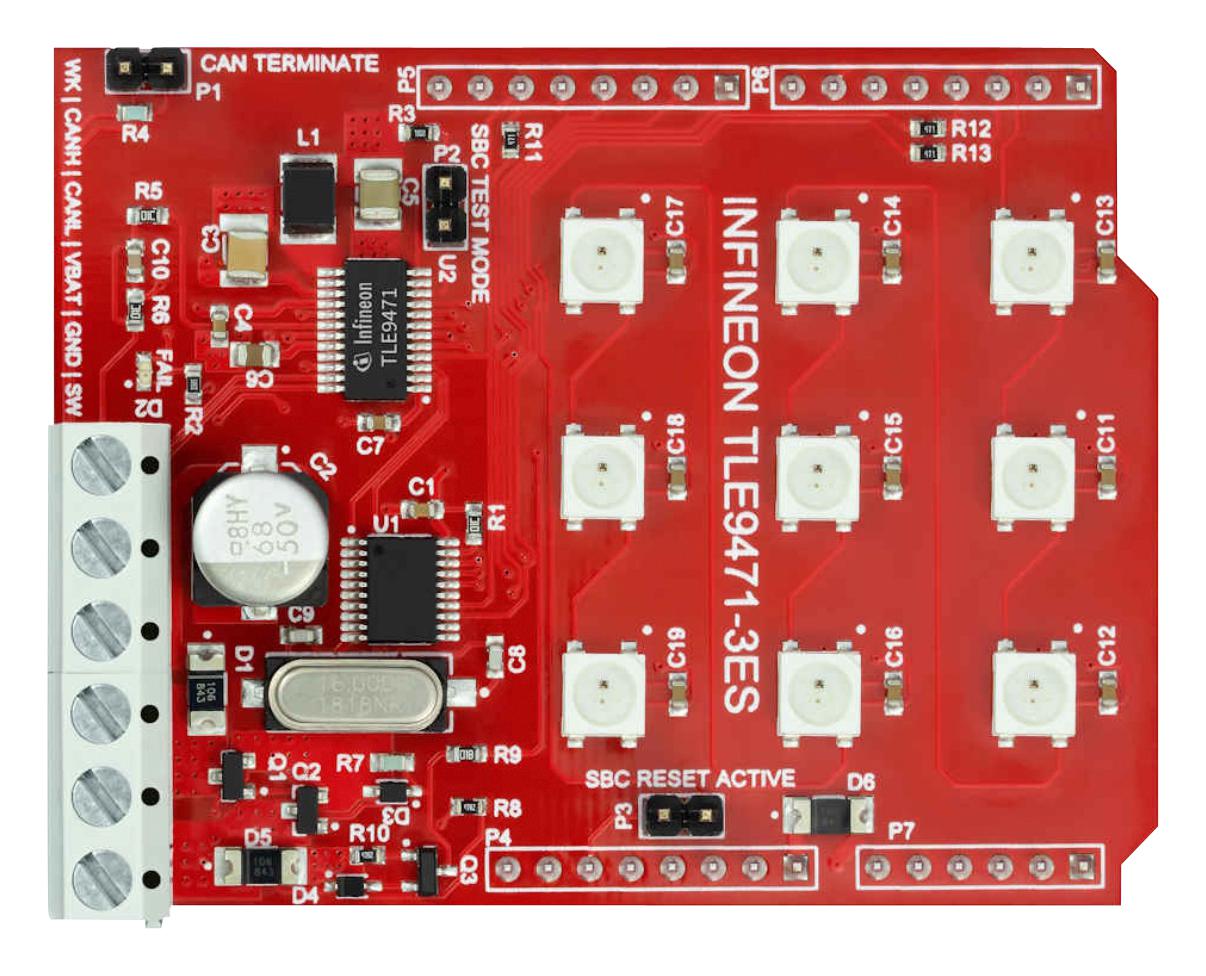

INFINEON SBCSHIELDTLE9471TOBO1 Lite DCDC Automation Shield
The Lite DCDC System Basis Chip Shield for Arduino features an integrated TLE9471-3ES SBC, enabling efficient control of 9 WS2812B RGB LEDs via a built-in buck converter. It supports CAN bus communication up to 1 Mb/s with the MCP2515 handler, and switches loads up to 2.5 amps using its integrated charge pump and power MOSFETs. The shield offers high-voltage wake input, switchable CAN termination, and test/reset modes, making it ideal for intelligent lighting, pixel arrays, RC projects, and distributed motor or lighting control applications. Compatible with Arduino, it simplifies complex projects with user-friendly libraries and code examples.
INFINEON SBCSHIELDTLE9471TOBO1 Lite DCDC Automation Shield Specifications:
- Supply voltage range: 9V to 12V
- Number of LEDs supported: 9 WS2812B RGB LEDs
- Buck converter integrated for LED power supply
- CAN communication speed: up to 1 Mb/s with MCP2515 handler
- Load switching capability: up to 2.5 amps with integrated charge pump and power MOSFETs
- High voltage wake input for power control
- Switchable 120 Ohm CAN termination
- Test and reset modes for Arduino compatibility
- High-voltage GPIO with protective functions
- Main regulator: 5V low-dropout (Buck SMPS)
- Device package: PG-TSDSO-24-1 (150 mil)
- Supports CAN FD and Partial Networking
- Includes low-power modes and cyclic wake-up features
- Compatible with Arduino and microcontroller libraries
- Includes external protection diodes for inductive loads
Buy the Buy Infineon TLE9471-3ES Part Number SBCSHIELDTLE9471TOBO1 Online
Easily upgrade your Arduino projects with the Lite DCDC Automation Shield featuring the TLE9471-3ES IC. This shield provides efficient LED lighting control, robust CAN bus support up to 1 Mb/s, and high-current load switching up to 2.5A. Its integrated buck converter powers 9 RGB LEDs, while the high-voltage wake input and switchable termination enable flexible system design for intelligent lighting, pixel arrays, or distributed motor and lighting controls. Compatible with Arduino libraries and examples, it simplifies complex automation solutions for hobbyists and professionals alike.
Order your Infineon Lite DCDC SBC Shield TLE9471-3ES today and enhance your IoT and automation projects with reliable CAN communication and LED control.
