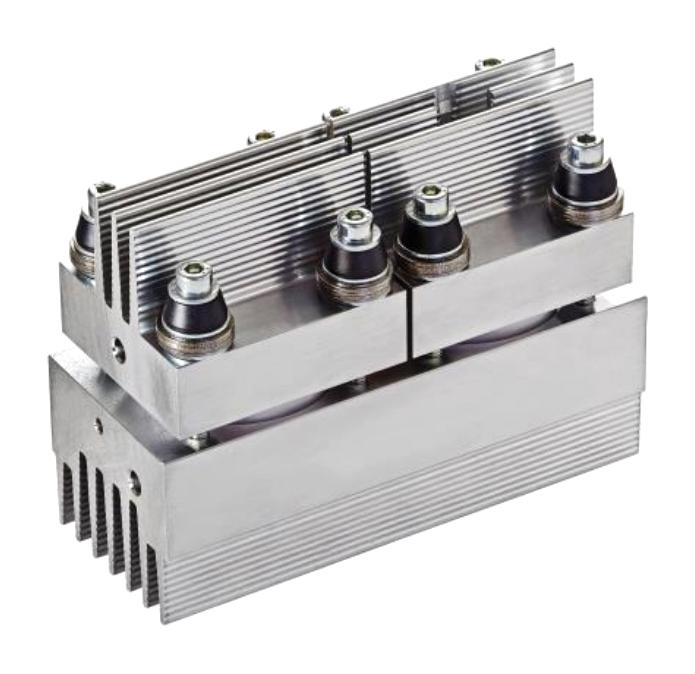

INFINEON STT2200N18P55XPSA1 Power Control Module
The Soft Starter Module STT2200N18P55 is an advanced bipolar device designed for high reliability in industrial applications such as soft starting, bypass switching, power controlling, and static switching. It features optimized thermal management with an integrated heatsink, high surge current capacity of 17,500A, and a maximum junction temperature of 125°C. The module exhibits excellent thermal and electrical characteristics suitable for demanding environments, including transient thermal impedance, high voltage tolerance up to 7800V, and robust mechanical construction for industrial automation systems.
INFINEON STT2200N18P55XPSA1 Power Control Module Specifications:
- Peak Voltage: 7800 V
- Surge Current: 17,500 A
- Overload Current: 2180 A
- Maximum Junction Temperature: 125°C
- Thermal Resistance, Junction to Ambient: 0.082 K/W
- Thermal Resistance, Junction to Reference Point: 0.029 K/W
- Gate Trigger Current: 12 V, 12 V gate trigger voltage
- Gate Trigger Current: 1 A
- Gate Non-trigger Current: 0.5 V
- Operating Temperature: -40°C to +125°C
- Storage Temperature: -40°C to +130°C
- Body Dimensions: Approximate size suitable for industrial mounting
- Mechanical: Si-element with pressure contact, weight ~1340g
- Thermal Resistance, Inner to Module: 0.028 K/W
- Press Contact Technology for High Reliability
Buy the Infineon STT2200N18P55 – Reliable Power Control Module for Industrial Applications
Order the Infineon Power Control Module today for industrial automation needs. Featuring high surge current capacity, excellent thermal management, and reliable switching performance, this module is ideal for soft starters, static switches, and power controllers. Its integrated heatsink ensures efficient thermal dissipation, making it suitable for demanding environments. Designed for easy installation and long-term durability, the STT2200N18P55 guarantees optimal performance in controlling high voltage and current loads, enhancing your system's stability and efficiency. Purchase online now for fast delivery and seamless integration into your application.
Get Infineon STT2200N18P55 today—built for precision, high surge capacity, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy INFINEON STT2200N18P55XPSA1?
You can click on the BUY or RFQ button to purchase STT2200N18P55XPSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part STT2200N18P55XPSA1?
You can download the STT2200N18P55XPSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of STT2200N18P55XPSA1?
INFINEON
