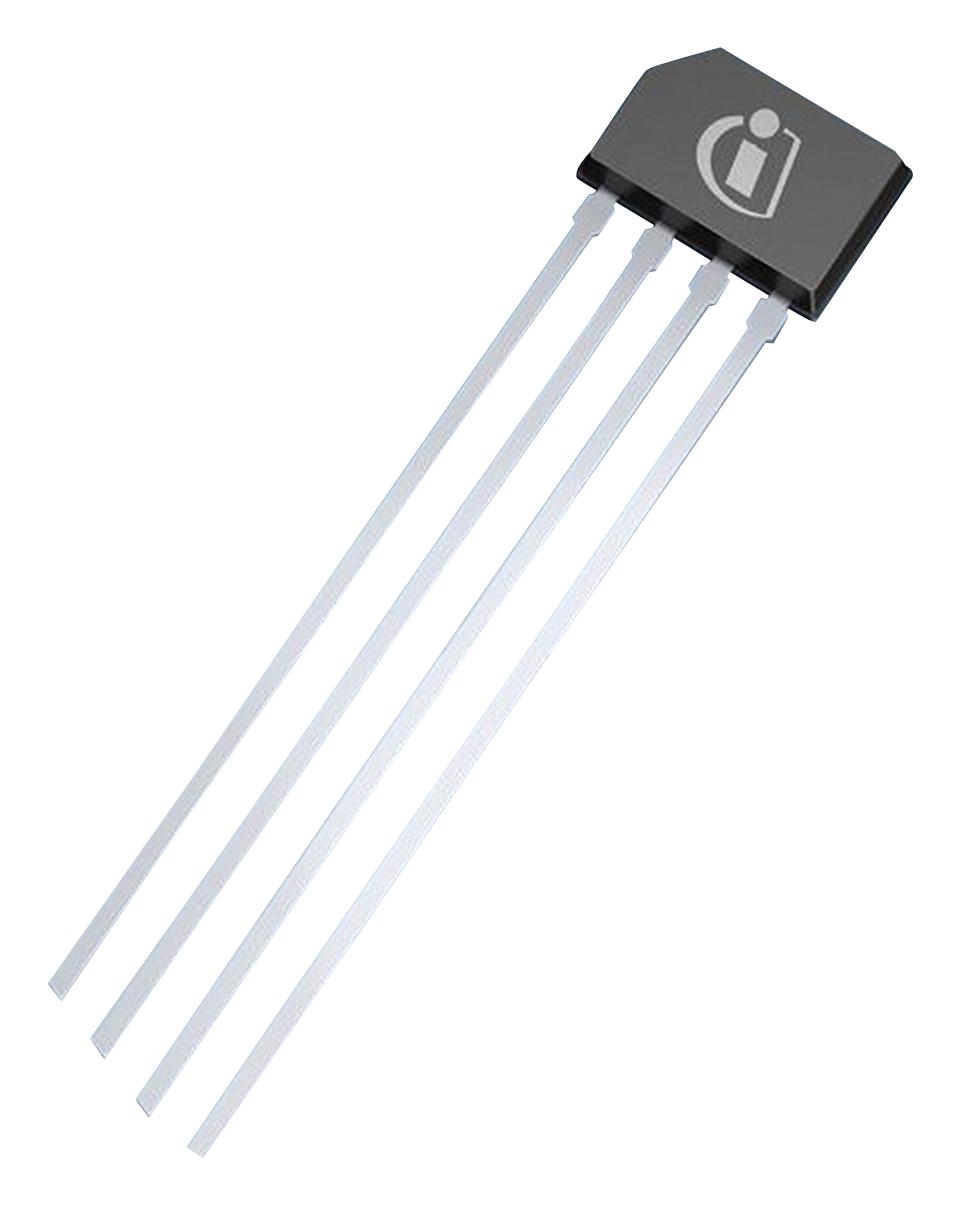

INFINEON TLE4922XINFHALA1 Magnetic Motion Sensor
The TLE4922 is an active mono cell Hall sensor designed for detecting motion and position of ferromagnetic and permanent magnet structures. It features self-calibration for high accuracy and operates in harsh environments with wide temperature ranges from -40°C to 155°C. Ideal for small engine speed sensing, transmission speed measurement, and speedometer applications, the sensor offers twist-independent mounting, short-circuit protection, reverse voltage protection, and high EMC & ESD robustness. With a broad operating voltage of 4.5V to 18V and true zero speed detection up to 8kHz, it delivers reliable performance in demanding conditions.
INFINEON TLE4922XINFHALA1 Magnetic Motion Sensor Specifications:
- Package: PG-SSO-4-1
- Supply Voltage: 4.5V to 18V
- Output OFF voltage: -1 V (max 60 min at 25°C)
- Output ON voltage: -18 V
- Junction Temperature Range: -40°C to 155°C
- Frequency Range: 0 to 8000 Hz
- Reverse Polarity Protection: Yes
- Short-circuit current protection: Yes
- ESD Resistance: +3kV HBM
- Maximum Power Dissipation: within device limits
- guaranteed over operating lifetime and temperature
- Strong immunity against electromagnetic and electrostatic disturbances
- Robust against wheel run outs, suitable for automotive and industrial use
- True zero speed detection capability
- Adaptive symmetrical hysteresis/threshold for precise sensing
- High sensitivity and accuracy with wide operational temperature
Buy the Infineon Series TLE4922 Magnetic Sensor: TLE4922XINFHALA1
Secure your project with the innovative Infineon TLE4922 magnetic sensor, designed for accurate motion detection in small engines and industrial applications. Featuring self-calibration, a wide temperature range from -40°C to 155°C, and robust protections against electrical and environmental stresses, this sensor ensures longevity and precise performance. Its broad operating voltage of 4.5V to 18V, true zero speed detection up to 8kHz, and immunity to wheel run outs make it ideal for automotive, industrial, and speed sensing tasks. Purchase online today for dependable, high-performance sensing solutions that meet demanding industrial needs.
Order your Infineon Series TLE4922 magnetic sensor today and ensure your projects benefit from reliable, accurate motion detection in harsh environments.
