INFINEON TLS4125D0EPV50XUMA1 Automotive Synchronous Step-Down Regulator
The OPTIREG switcher TLS4125D0EPV50 is a 2.5A synchronous step-down regulator designed for automotive applications. It features a fixed 5V output, high efficiency, integrated power MOSFETs, soft-start, and wide input voltage range from 3.7V to 35V. The device offers adjustable switching frequencies up to 2.8 MHz, PWM and light load PFM modes, spread spectrum modulation for EMI reduction, and thermal and overcurrent protections. Its reliable performance and integrated components reduce system costs and space, making it ideal for automotive electronics, ADAS, infotainment, and navigation systems.
INFINEON TLS4125D0EPV50XUMA1 Automotive Synchronous Step-Down Regulator Specifications:
- Input Voltage Range: 3.7 V to 35 V
- Output Voltage: 5 V
- Output Current: 2.5 A
- Switching Frequency: 320 kHz to 560 kHz or 1.6 MHz to 2.8 MHz
- PWM Mode Feedback Voltage Accuracy: ±1.5%
- Light Load Mode: PFM with high efficiency
- Synchronization Input: Yes
- Spread Spectrum Modulation: Yes
- Thermal Shutdown: Yes
- Overcurrent and Overvoltage Protection: Yes
- Input Undervoltage Shutdown: Yes
- Operating Temperature Range: -40°C to 150°C

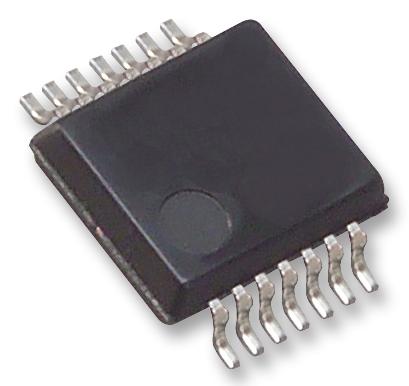

- Package: PG-TSDSO-14
- Fallout Voltage Discharge: Yes
- Switching Regulation Mode: Peak Current Mode PWM
- Soft-Start Function: Yes
- Efficiency Optimization: Light load PFM mode
Buy the Infineon Series OPTIREG 2.8 MHz Switcher: TLS4125D0EPV50
Enhance your automotive and embedded systems with the OPTIREG TLS4125D0EPV50, a high-performance 2.5A synchronous regulator. Featuring a fixed 5V output, wide input range from 3.7V to 35V, and switching frequencies up to 2.8 MHz, it delivers exceptional efficiency and reliability. Its integrated power MOSFETs, spread spectrum EMI reduction, and protections against overcurrent and overvoltage make it ideal for ADAS, infotainment, and navigation systems. Compact and thermally efficient, it simplifies design and reduces system costs, ensuring dependable operation across demanding automotive environments.
Order your Infineon Series OPTIREG TLS4125D0EPV50 synchronous step-down regulator today and ensure your automotive electronics are efficient, reliable, and protected.
Frequently Asked Questions
Where can I buy INFINEON TLS4125D0EPV50XUMA1?
You can click on the BUY or RFQ button to purchase TLS4125D0EPV50XUMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part TLS4125D0EPV50XUMA1?
You can download the TLS4125D0EPV50XUMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of TLS4125D0EPV50XUMA1?
INFINEON
