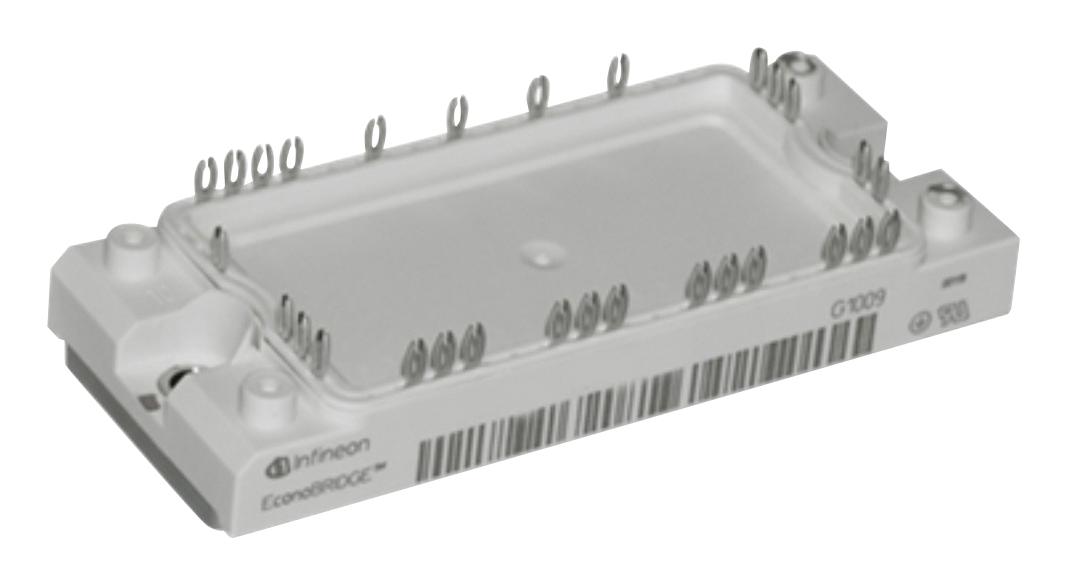

INFINEON TDB6HK180N16RRB11BOSA1 Power Module
This high-performance power module features advanced IGBT and diode technology for efficient switching and reliable operation in industrial automation, renewable energy, and motor control applications. The module includes robust thermal management characteristics and is designed to withstand high voltages and current loads, providing excellent electrical performance and durability. Its compact design facilitates easy integration into complex electrical systems, making it ideal for high-power inverter and chopper circuits. Suitable for demanding environments, it ensures long-term stability and efficient energy conversion, supported by quality certification and precise technical specifications.
INFINEON TDB6HK180N16RRB11BOSA1 Power Module Specifications:
- Maximum repetitive peak reverse voltage: 1600 V
- Maximum RMS forward current per diode: 150 A at 80°C
- Maximum RMS current at rectifier output: 180 A at 80°C
- Surge forward current (10 ms, 25°C): 1600 A
- Surge forward current (10 ms, 150°C): 1400 A
- Forward voltage at 150°C, Ir=150A: 1.20 V
- Threshold voltage at 150°C: 0.83 V
- Thermal resistance junction to case per diode: 0.35 K/W
- Case to heatsink thermal resistance: 0.165 K/W
- Collector-emitter voltage TH at 28°C: 1200 V
- DC collector current at 25°C: 100 A
- Peak collector current (1 ms): 200 A
- Total power dissipation at 25°C: 515 W
- Gate-emitter peak voltage: +120 V
- Collector-emitter saturation voltage at 100A: 2.20 V
- Gate threshold voltage at 25°C: 3.55 V
- Gate charge: 0.80 μC
- Internal gate resistor at 25°C: 7.50 Ω
- Insulation test voltage RMS, 1 min: 25 kV
- Module baseplate material: Copper
Buy the Cinfineon Series TDB6HK180N16RR Power Module: TDB6HK180N16RRB11BOSA1
Order the Cinfineon TDB6HK180N16RR power module online today and leverage advanced IGBT technology for efficient, reliable energy conversion. Perfect for industrial automation, motor drives, and inverter systems, this high-capacity module is built to withstand demanding conditions with excellent thermal and electrical performance. Its robust design ensures long-term stability, easy integration, and optimal operation under high voltages and currents. Simplify your procurement process by purchasing online and ensure your projects benefit from proven quality and precise specifications, enhancing system efficiency.
Buy Cinfineon TDB6HK180N16RRB11BOSA1 power module now and experience unmatched reliability and performance in high-power industrial applications.
Frequently Asked Questions
Where can I buy INFINEON TDB6HK180N16RRB11BOSA1?
You can click on the BUY or RFQ button to purchase TDB6HK180N16RRB11BOSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part TDB6HK180N16RRB11BOSA1?
You can download the TDB6HK180N16RRB11BOSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of TDB6HK180N16RRB11BOSA1?
INFINEON
