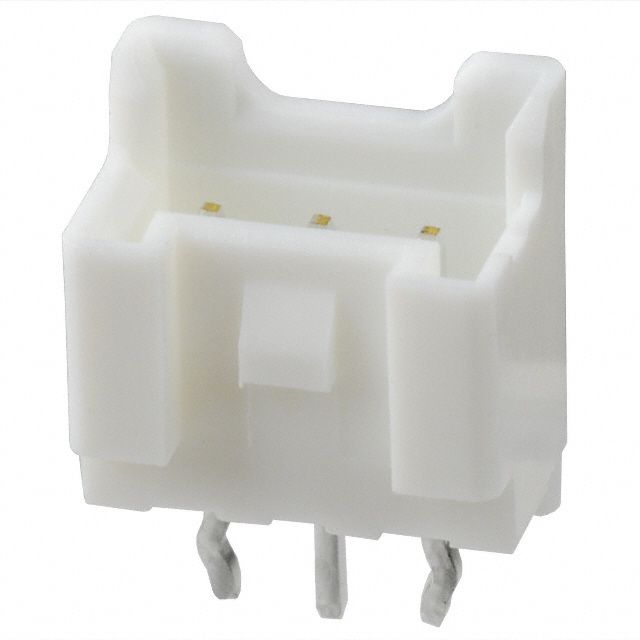

JST B03BPASK1LFSN Connector Header
This PA Series top-entry connector header with 3 positions features male pins in a single row, 2.0mm pitch, designed for through-hole mounting. Made with copper alloy and tin-plated, it includes a boss for secure attachment and is RoHS compliant. Suitable for reliable electrical connections in various electronic devices, it has a natural color, UL94V-0 flame rating, and conforms to safety standards. Its compact dimensions and durable materials ensure long-lasting performance in tight spaces and demanding environments.
JST B03BPASK1LFSN Connector Header Specifications:
- Material: Post made of Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Housing: Glass-filled PBT, UL94V-0, natural (white)
- Number of Positions: 3
- Pitch: 2.0mm
- Mounting Type: Through-hole
- Flame Rating: UL 94V-0
- RoHS Compliance: Yes
- Temperature Range: -25°C to +85°C
- Contact Resistance: Initial / 15mΩ max, after environmental testing / 25mΩ max
- Insulation Resistance: Initial / 1,000MΩ minimum
- Withstanding Voltage: 800V AC/minute
- Applicable Wire: AWG #28 to #22
- Dimensions: A - 40mm, B - 80mm, height includes boss for secure mounting
- Color: Natural (white)
Buy the JST Series PA Top Entry 3-Position Connector Header: B03BPASK1LFSN
Purchase the JST Series PA Top Entry 3-Position Connector Header online today—engineered for reliability and durability in electronic assemblies. Featuring a 2.0mm pitch, RoHS compliance, and a secure mounting boss, this component ensures stable connections. Made from high-quality copper alloy and flame-rated UL94V-0 material, it offers excellent electrical performance and durability. Perfect for compact devices and demanding environments, it combines easy installation with long-term reliability. Order now to enhance your electronic projects with this trusted connector header designed for professional use.
Get JST Series PA Top Entry 3-Position Connector Header—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy JST B03BPASK1LFSN?
You can click on the BUY or RFQ button to purchase B03BPASK1LFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B03BPASK1LFSN?
You can download the B03BPASK1LFSN datasheet or visit the JST website for support.
Who is the manufacturer of B03BPASK1LFSN?
JST
