KEYSIGHT TECHNOLOGIES 34951A Datasheet & Stock

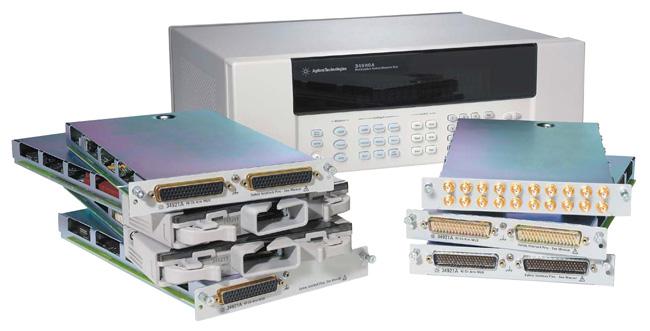

The 34951A is a four-channel digital-to-analog converter designed for the 34980A mainframe. It features four electronically calibrated analog outputs capable of delivering up to ±16V DC or ±20mA with 16-bit resolution. Each channel can be updated individually at a rate of 200 kHz. The device includes onboard memory to store and generate custom waveforms with over 500,000 points, which can be dynamically allocated among one or more channels for point-to-point arbitrary waveform output. Typical applications include sourcing bias voltages to devices under test, controlling programmable power supplies, and setting control system set-points. It uses standard 50-pin D-sub connectors for easy integration with cables, terminal blocks, or interconnect solutions.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES 34951A?
You can click on the BUY or RFQ button to purchase 34951A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part 34951A?
You can download the 34951A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of 34951A?
KEYSIGHT TECHNOLOGIES
