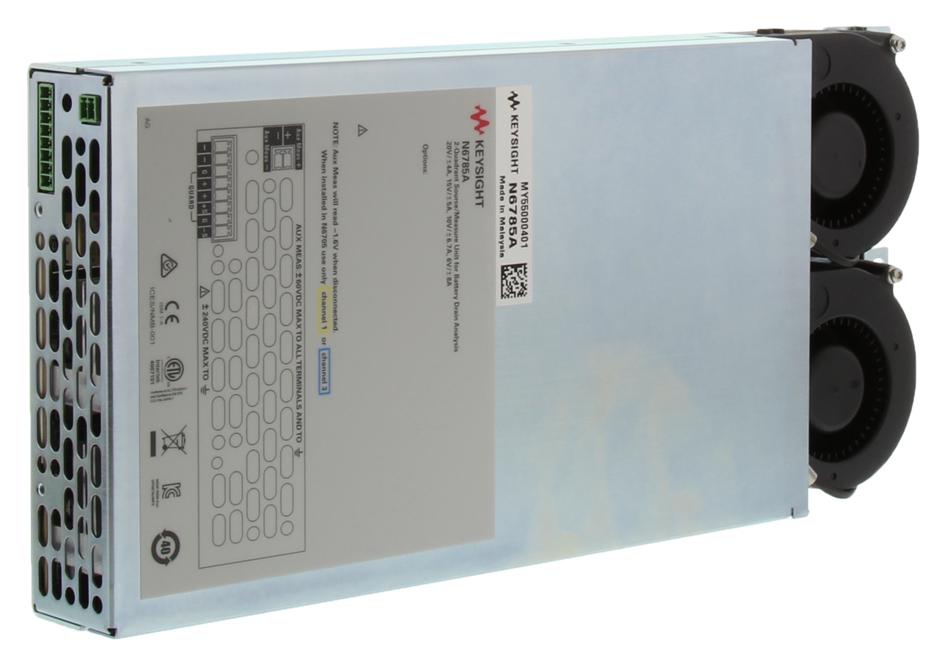

KEYSIGHT TECHNOLOGIES N6785A Source/Measure Unit
The N6785A is a 2-quadrant source/measure unit optimized for battery drain analysis with up to 80W power capacity. It accurately measures static and dynamic currents from nanoamperes to amperes across multiple ranges, enabling seamless measurement ranging for precise, real-time insights into device power consumption. Designed to emulate battery internal resistance and perform real-world battery rundown tests, it excels in portable device testing, power management, and consumer electronics applications. Fully controllable via the N6705 power analyzer, it supports waveform creation for device stimulation and offers advanced control and analysis through a PC interface, making it ideal for R&D, manufacturing, and test systems.
KEYSIGHT TECHNOLOGIES N6785A Source/Measure Unit Specifications:
- Output Voltage: Up to 20 V (varies by model)
- Output Current: Up to 8 A (derated with temperature)
- Power Rating: 80 W
- Measurement Ranges: Multiple current and voltage ranges supporting seamless measurement ranging
- Ripple & Noise (CV peak-to-peak): 15 mV from 20 Hz - 20 MHz
- Load Effect (Load Regulation): 700 uV (20 V range), 100 pA (3A range)
- Voltage Accuracy (at 23°C): 0.025% + 1.8 mV
- Current Accuracy (at 23°C): 0.04% + 300 pA for 3A range
- Recovery Time: < 35 ps with 10% to 90% load step
- Operation: 4-quadrant, glitch-free operation with multiple emulation modes
- Control Software: 14585A with advanced data logging and analysis capabilities
- Measurement Resolution: Effective resolution of ~28 bits with seamless measurement ranging
- Additional Features: Programmable output resistance, auxiliary voltage measurement, and waveform generation
Buy the Buy Keysight N6785A Part Number N6785A Online
Purchase your Keysight N6785A source/measure unit online today for reliable battery drain testing. This versatile, high-precision instrument offers seamless measurement ranging, real-world battery emulation, auxiliary voltage monitoring, and waveform generation. Whether in R&D labs or manufacturing lines, it helps deliver excellent device performance insights. Compatible with the N6705 power analyzer software, the N6785A makes complex battery life and power consumption analysis straightforward and efficient, ensuring your portable devices meet the highest standards of endurance and reliability.
Order your Keysight N6785A battery drain analysis SMU today and enhance your device testing with seamless current measurement and advanced control features.
