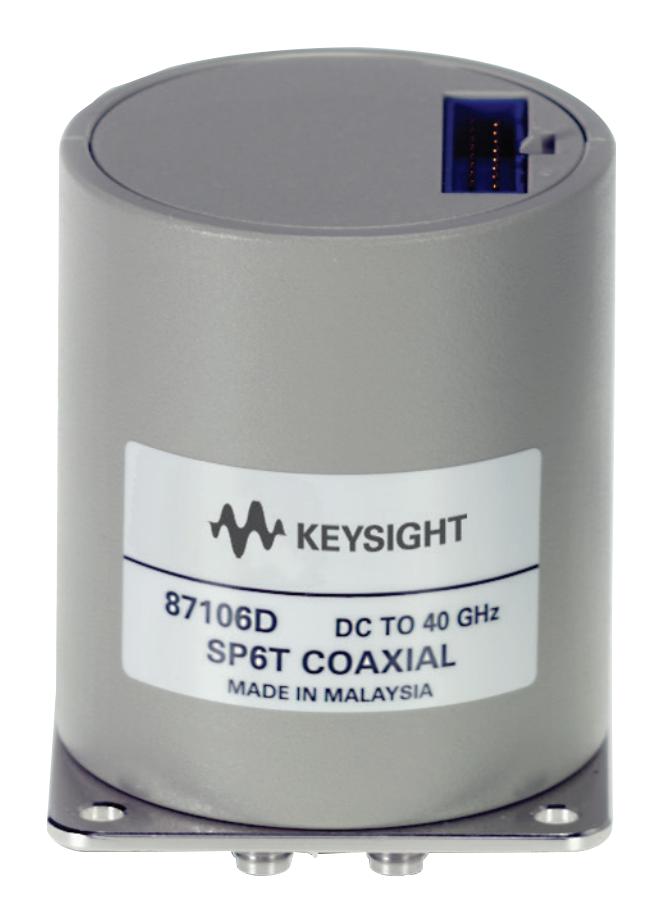

KEYSIGHT TECHNOLOGIES 87106D RF Multiport Switch
The Keysight 87104/6D electromechanical multiport switches are designed for high reliability and precision in microwave and RF testing up to 40 GHz, offering exceptional isolation (> 65 dB) and repeatability (0.03 dB over 5 million cycles). Ideal for automated test systems, signal routing, and measurement applications, they feature long operational life exceeding 10 million cycles, optical interrupt circuitry for enhanced reliability, and versatile drive options including TTL and power-supply control. Their compact size and robust design ensure ease of integration and consistent performance in demanding testing environments.
KEYSIGHT TECHNOLOGIES 87106D RF Multiport Switch Specifications:
- Frequency Range: DC to 40 GHz
- Insertion Loss: 0.3 dB + 0.015 x frequency (GHz) up to 26.5 GHz, 0.030 x frequency (GHz) from 26.5 to 40 GHz
- Isolation: >65 dB at 40 GHz, minimum
- Repeatability: 0.03 dB over 5 million cycles at 25°C
- Maximum Power Handling: 50 W peak into internal 50 Ohm termination, 100 W peak for hot switching
- VSWR: Maximum 1.7 from DC to 40 GHz, varying with frequency
- Environmental Range: -25°C to +75°C operating, -55°C to +85°C storage
- Mechanical Dimensions: 4.37 x 1.80 x 1.062 inches, weight 0.229 kg
- Connectors: 2.92 mm (f) for RF ports
- Supply Voltage: 20-32 VDC
- Drive Current: 200 mA per RF path, TTL and power options available
- Switching Life: >10 million cycles
- Weight: 0.229 kg
Buy the Keysight Series 87104D RF Switch: 87106D
Purchase the Keysight Series 87104D RF multiport switch online now to elevate your measurement system's accuracy and reliability. Designed for high-frequency applications up to 40 GHz, this switch features outstanding isolation greater than 65 dB, exceptional repeatability of 0.03 dB over 5 million cycles, and a robust lifetime exceeding 10 million switching operations. Its compact size, versatile drive options including TTL and power supply control, and optical interrupt circuitry make it ideal for automated test environments, satellite, and antenna monitoring systems. Experience lower maintenance costs, reduced calibration cycles, and consistently precise measurements by ordering this high-performance switch today.
Order your Keysight Series 87104D high-frequency RF switch today and enhance your automated test systems with reliable, precise switching performance up to 40 GHz.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES 87106D?
You can click on the BUY or RFQ button to purchase 87106D from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part 87106D?
You can download the 87106D datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of 87106D?
KEYSIGHT TECHNOLOGIES
