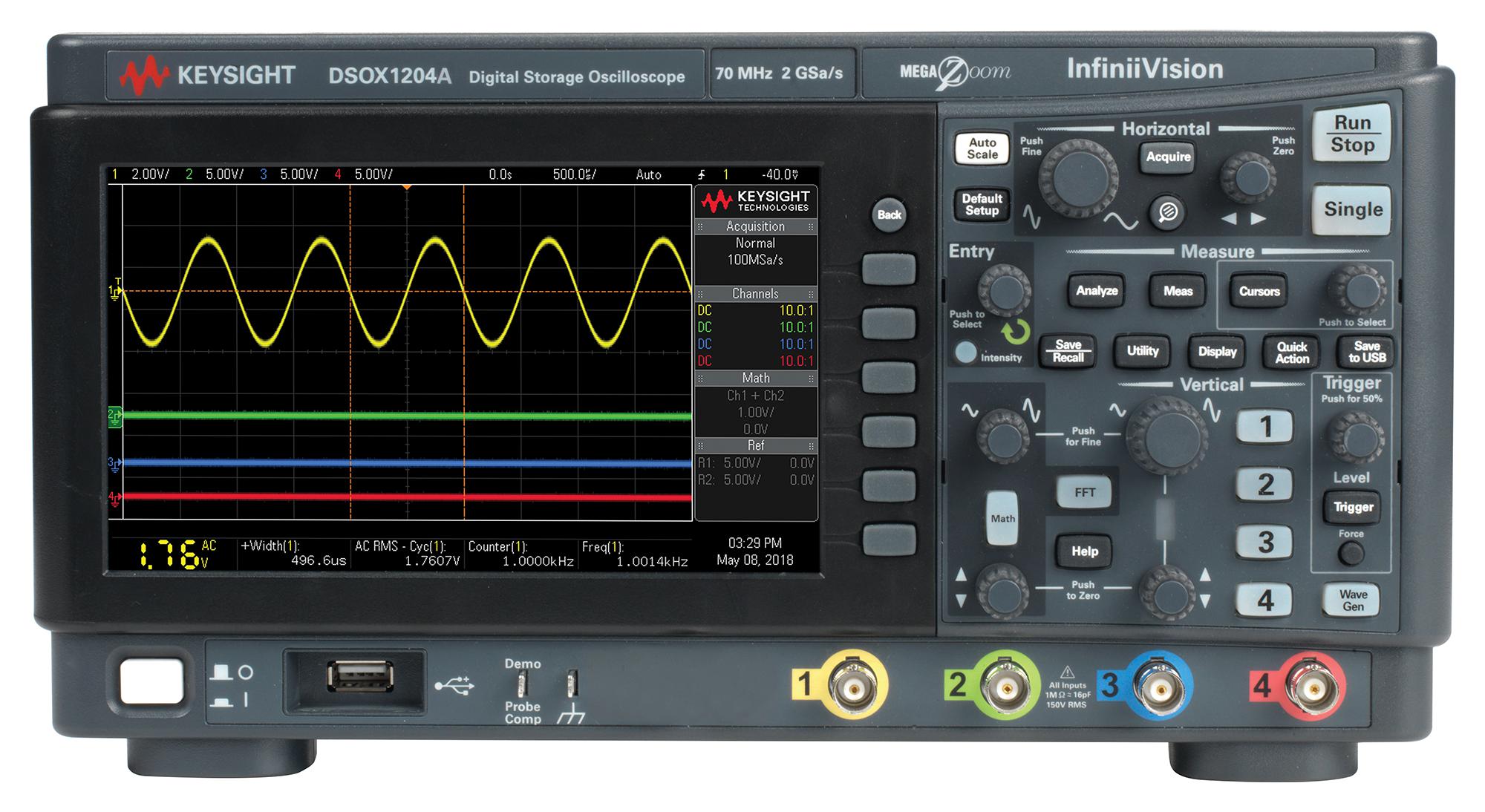

KEYSIGHT TECHNOLOGIES DSOX1204ADSOX1200A200 Digital Oscilloscope
The InfiniiVision 1000 X-Series DSO offers four analog channels with a 200 MHz bandwidth upgrade (pre-installed in the DSOX1200A-200 model). It is ideal for industry professionals, hobbyists, manufacturing, and educational environments. Features include a maximum sample rate of 2 GSa/s, a memory depth of 1 million points, and a 7-inch TFT LCD WVGA display. The oscilloscope provides a fast update rate of 50,000 waveforms per second for enhanced signal visibility. It supports connectivity interfaces such as I²C, SPI, UART/RS-232, CAN, and LIN. Built-in training signals, free lab guides, and on-board help facilitate easy setup, measurement, and documentation. The package includes the DSO with 200 MHz bandwidth upgrade, four N2140A probes, secure erase capabilities, GUI interface with multiple language support, power cord, a 3-year warranty, and calibration certificate.
KEYSIGHT TECHNOLOGIES DSOX1204ADSOX1200A200 Digital Oscilloscope Specifications:
- Bandwidth: 200 MHz (upgrade included in model DSOX1200A-200)
- Maximum sample rate: 2 GSa/s all channels
- Maximum memory depth: 1 Mpts
- Display: 7-inch TFT LCD WVGA
- Waveform update rate: 50,000 waveforms/sec
- Channels: 4 analog channels
- Input coupling: DC, AC (10 Hz cutoff)
- Input impedance: 1 MΩ ± 2%, 16 pF ± 3 pF
- Vertical sensitivity: 500 μV/div to 10 V/div
- Vertical resolution: 8 bits
- Maximum input voltage: 150 Vrms, 200 Vpk
- Horizontal system: 5 ns/div to 50 s/div, 2.5 ps resolution
- Trigger: Edge, pulse width, pattern, video, and more; DC, AC coupling options
- Connectivity: USB 2.0 host and device, Ethernet (models with LAN support), local GUI in multiple languages
- Power: 100–240 V, 50/60 Hz; max power 50 W
- Dimensions: 314 mm x 165 mm x 130 mm
- Weight: 3.23 kg
- Environmental: Operating from 0 to +50°C, max 3000 m altitude, humidity up to 95%RH
Buy the Buy Keysight DSOX1204A Oscilloscope Part Number DSOX1204A Online
Get your Keysight DSOX1204A oscilloscope online today to experience industry-leading signal measurement with 200 MHz bandwidth, 2 GSa/s sampling, and a 7-inch WVGA display. This four-channel scope offers a fast 50,000 waveforms/sec update rate and 1 million points of memory, making it perfect for professional, educational, and hobbyist use. It includes a bandwidth upgrade, four probes, USB connectivity, built-in training signals, and comprehensive software support. Order now and enjoy a 3-year warranty and calibration certificate for dependable, precise measurements.
Order your Keysight DSOX1204A high-bandwidth oscilloscope today and enhance your signal analysis with industry-ready features and reliable performance.
