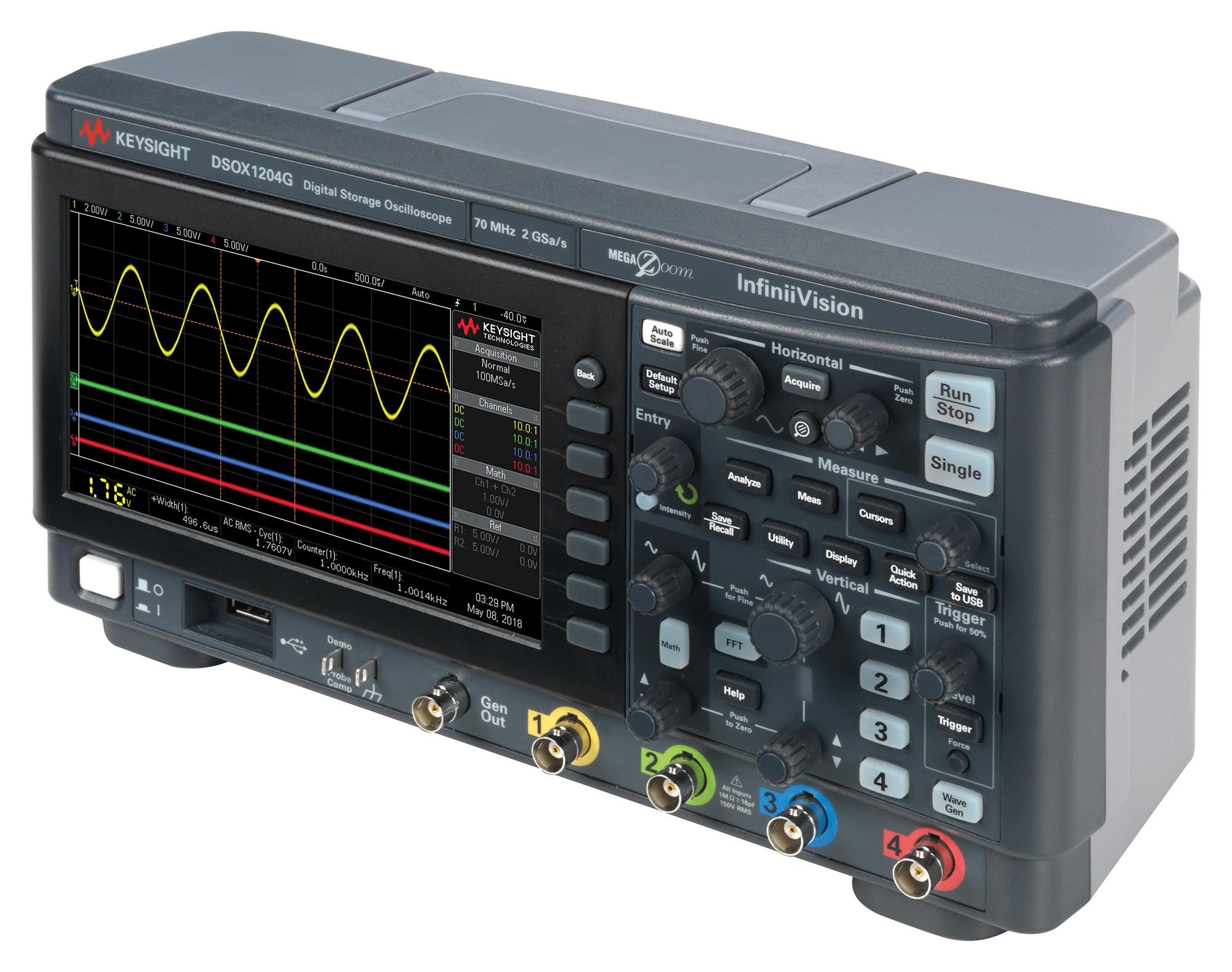

KEYSIGHT TECHNOLOGIES DSOX1204GDSOX1200A200 Digital Oscilloscope
The InfiniiVision 1000 X-Series oscilloscopes are 200MHz digital oscilloscopes with four analog channels and an integrated waveform generator. They support professional measurement features such as Bode plots, mask testing, mathematical functions, FFT analysis, and serial protocol decoding. Key features include a high acquisition rate of 200,000 waveforms per second, an intuitive user interface with built-in help and training signals, and support for protocols like I²C, SPI, UART/RS-232, CAN, and LIN. They feature a 7-inch TFT WVGA display, USB 2.0 ports, LAN connectivity, mask testing, a digital voltmeter, and a frequency counter, making them versatile tools for testing and analysis in educational and professional environments.
KEYSIGHT TECHNOLOGIES DSOX1204GDSOX1200A200 Digital Oscilloscope Specifications:
- Bandwidth: 200 MHz (base model), 100 MHz, 70 MHz (other models with optional upgrades)
- Channels: 4 analog channels, external trigger, displayable as a third digital channel
- Sample rate: Up to 2 GS/s (one- or two-channel operation), 1 GS/s (three- or four-channel operation)
- Memory depth: 2M points (one- or two-channel), 1M points (three- or four-channel) with external trigger
- Waveform update rate: 200,000 waveforms/sec
- Display: 7-inch TFT WVGA LCD
- Connectors: USB 2.0 host & device ports, LAN port
- Built-in functions: FFT, math functions, mask testing, digital voltmeter, frequency counter
- Serial protocols supported: I²C, SPI, UART/RS-232, CAN, LIN
- Integrated waveform generator: 20 MHz, supports modulation (only in “G” models)
- Power: 100-240 V, 50/60 Hz; 50 W max
- Dimensions: 314 mm x 165 mm x 130 mm; weight: 3.23 kg
- Environmental: Operating temperature 0°C to +50°C, humidity up to 95%
- Certifications: IEC 61010-1, EMC standards, safety compliant
Buy the Keysight DSOX1204G – Reliable Oscilloscope for Industrial Applications
Order the Keysight DSOX1204G digital oscilloscope online today and enhance your testing and measurement projects with high bandwidth, four channels, and integrated measurement features. Designed for professionals and educators alike, this scope offers a 200 MHz bandwidth, 200,000 waveforms per second update rate, and support for serial protocols such as I²C, SPI, UART, CAN, and LIN. Its built-in waveform generator, digital voltmeter, mask testing, and advanced math functions streamline your workflow, while USB and LAN connectivity ensure easy data transfer and remote control. Get yours now and elevate your test and analysis capabilities to the next level.
Buy Keysight DSOX1204G now and experience unmatched reliability and performance with advanced measurement capabilities and versatile analysis tools.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES DSOX1204GDSOX1200A200?
You can click on the BUY or RFQ button to purchase DSOX1204GDSOX1200A200 from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part DSOX1204GDSOX1200A200?
You can download the DSOX1204GDSOX1200A200 datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of DSOX1204GDSOX1200A200?
KEYSIGHT TECHNOLOGIES
