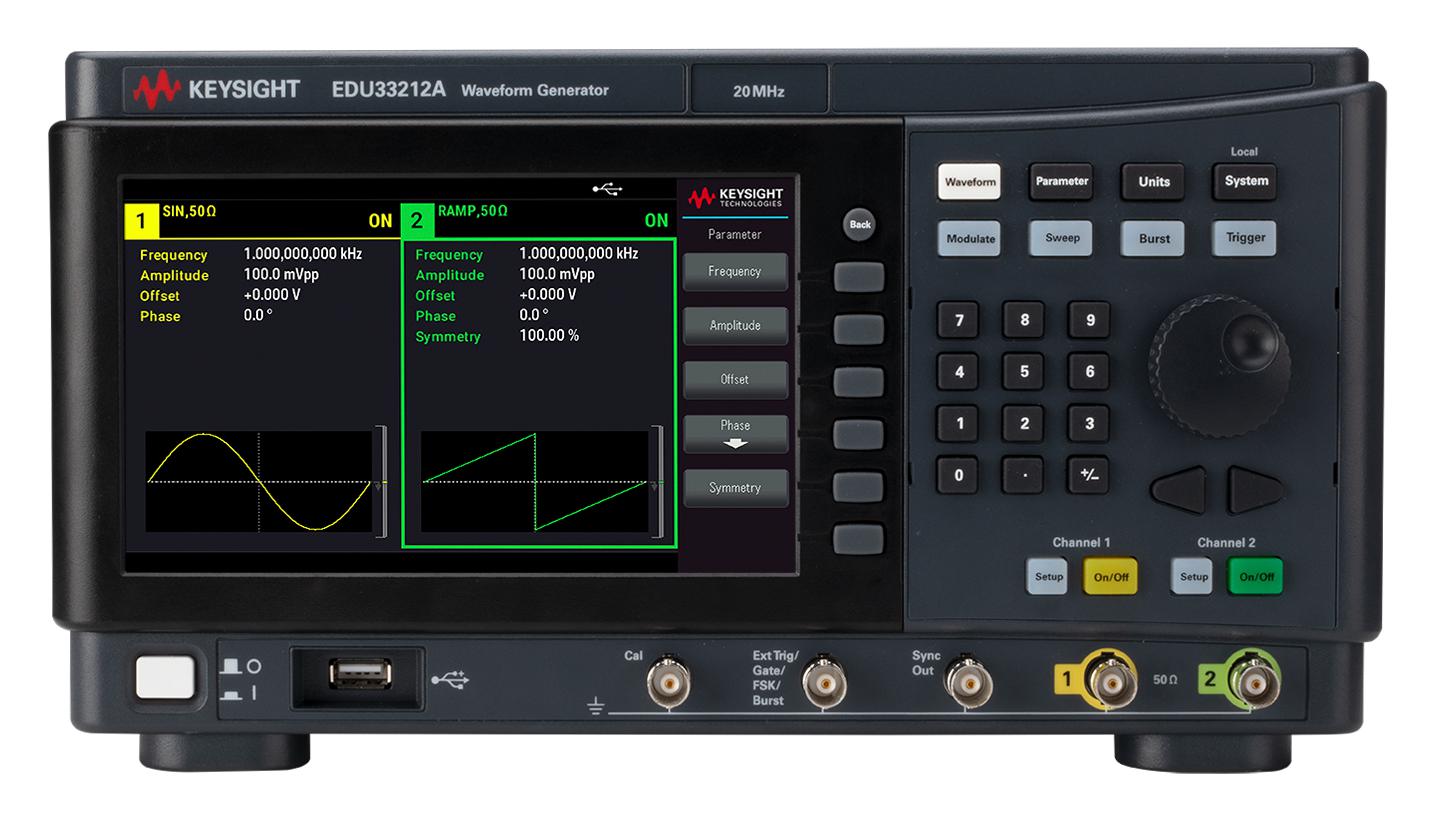

KEYSIGHT TECHNOLOGIES EDU33212A Function Generator
The EDU33212A is a dual-channel 20 MHz function and arbitrary waveform generator optimized for precise synchronized testing and versatile signal generation. It features a 7-inch color display that simplifies parameter setup, signal viewing, and editing. The device includes six modulation types, 17 standard waveforms, and supports 16-bit arbitrary waveforms with up to 8 million samples per channel. Two independent channels can be coupled in amplitude and frequency, offering flexible testing capabilities. Additional features include USB and LAN interfaces, external triggering, and PathWave BenchVue software for comprehensive remote control, making it ideal for advanced laboratory and engineering applications.
KEYSIGHT TECHNOLOGIES EDU33212A Function Generator Specifications:
- Maximum frequency: 20 MHz
- Channels: 2
- Standard waveforms: Sine, Square, Ramp, Pulse, Triangle, Gaussian Noise, PRBS, DC, Cardiac, Exponential Fall/Rise, Gaussian Pulse, Haversine, Lorentz, D-Lorentz, Negative Ramp, Sinc
- Built-in arbitrary waveform memory: Up to 8 MSa per channel, with 1Msa per waveform
- Display: 7-inch color display
- Modulation types: AM, FM, PM, FSK, BPSK, PWM
- Operating modes: Continuous, Modulate, Frequency Sweep, Gated Burst
- Independent channels: Yes, can be coupled in amplitude and frequency
- External I/O: USB host port, LAN interface, Sync/trigger output, External trigger/gate, Calibration connector
- Additional features: PathWave BenchVue support, external triggering, USB for file management
Buy the Buy Keysight EDU33212A Dual-Channel 20 MHz Function Generator Part Number EDU33212A Online
Enhance your laboratory with the Keysight EDU33212A dual-channel 20 MHz function generator. Featuring a 7-inch color display, flexible modulation options, and high-resolution arbitrary waveform capabilities, it ensures reliable signal synthesis. Its multiple connectivity options include USB and LAN, facilitating remote operation and file management. The device supports synchronized testing for complex applications. Purchase online now to access advanced features, comprehensive software integration, and reliable performance, making it an essential tool for engineers and researchers seeking precise testing and signal generation capabilities.
Order your Keysight EDU33212A versatile 20 MHz dual-channel waveform generator today and ensure precise, synchronized testing for your advanced projects.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES EDU33212A?
You can click on the BUY or RFQ button to purchase EDU33212A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part EDU33212A?
You can download the EDU33212A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of EDU33212A?
KEYSIGHT TECHNOLOGIES
