KEYSIGHT TECHNOLOGIES N2781B Datasheet & Stock

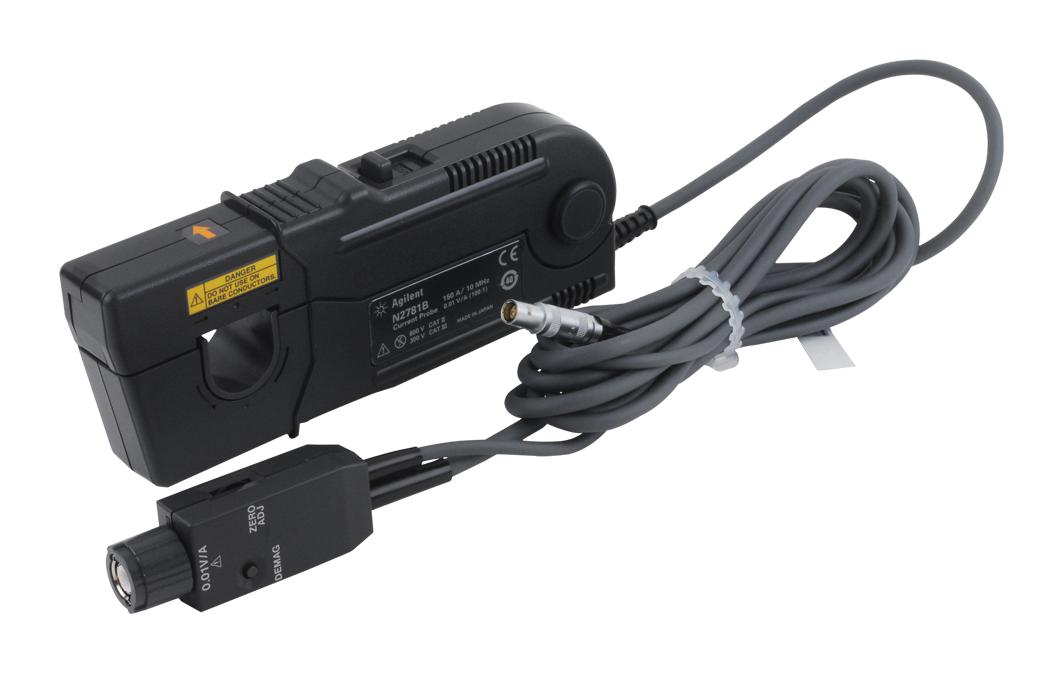

Compatible with any oscilloscope with high impedance BNC input, the new N2781B current probe offers accurate and reliable solution for measuring ac and dc currents. Using a hybrid technology that includes a Hall effect sensor and an AC current transformer, the probe provides accurate measurement of DC or AC currents up to 150 Arms continuous. The current probe features flat frequency response, low noise and low insertion loss that make the probes ideal for current measurements in such areas like measuring steady state or transient current of motor drive, switching power supplies, inverters, controllers, disk drives, LCD displays, electronic ballast and current amplifier driving inductive loads.




Flat bandwidth - dc to 10 MHz, Max. Current 150 Arms

Superior 1% accuracy and high S/N ratio

Overload protect function prevents probe damage at excessive input

Direct connection to high impedance BNC input of oscilloscope

"Demagnetize" button to remove any residual magnetism that built up in the magnetic core

External power supply N2779A lets you connect up to three N278xBs to a single power supply





Applications


Sensing & Instrumentation,

Metering,

Test & Measurement
