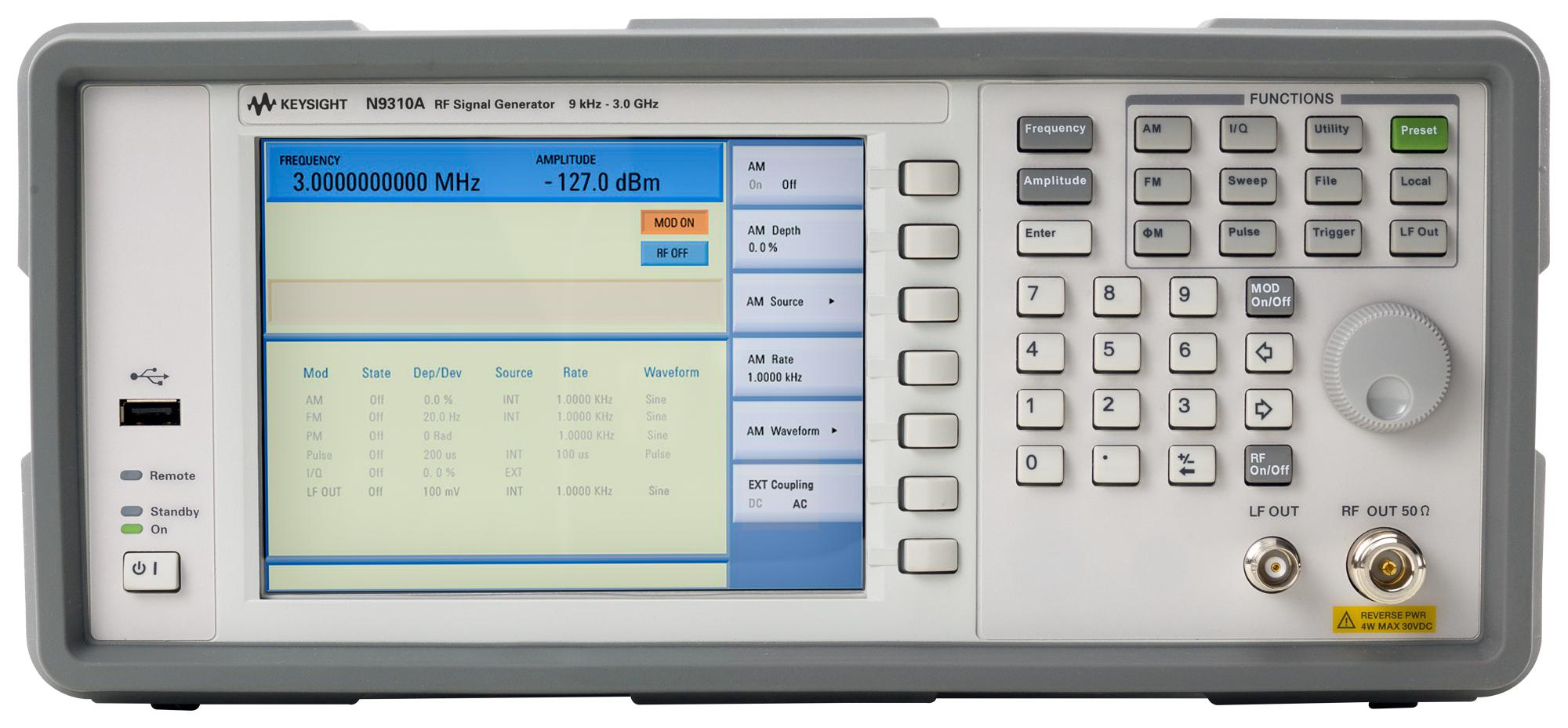

KEYSIGHT TECHNOLOGIES N9310A RF Signal Generator
The N9310A RF signal generator covers 9 kHz to 3 GHz, providing stable CW and low-frequency signals from 20 Hz to 80 kHz. It features adjustable output levels from -127 to +13 dBm (up to +20 dBm max), excellent phase noise at -95 dBc/Hz, and comprehensive sweep functions for RF and amplitude. It supports multiple analog modulation modes including AM, FM, phase, and pulse, with optional IQ modulation bandwidth of 20 MHz. Its user-friendly GUI supports 11 languages, with USB and SCPI connectivity for automation, making it ideal for testing, sensing, and signal processing applications.
KEYSIGHT TECHNOLOGIES N9310A RF Signal Generator Specifications:
- Frequency Range: 9 kHz to 3 GHz
- Resolution: 0.1 Hz
- Output Power: -127 to +13 dBm, up to +20 dBm max
- Phase Noise: <-95 dBc/Hz at 1 GHz, 20 kHz offset
- Sweep Modes: RF and LF, 20 Hz to 80 kHz, up to 1,001 points
- Amplitude Modulation: 0 to 100% peak, 0.1% resolution, 20 Hz to 20 kHz
- Frequency Modulation: 20 Hz to 100 kHz, deviation <1%, accuracy <5%
- Pulse Modulation: On/Off ratio 240 dB, rise/fall time <3 s
- Internal Modulation: Sine wave 20 Hz to 80 kHz, amplitude 0-3V
- Interface: USB, SCPI compatible, 16 MB internal memory
- Power Supply: 100-240 VAC, 65 W, dimensions 132.5 x 320 x 400 mm
- Weight: 9.2 kg
- Environmental: Operating 5-45°C, Storage -20-70°C
Buy the Buy Keysight RF Signal Generator Part Number N9310A Online
Purchase the Keysight N9310A RF Signal Generator online for versatile testing and measurement applications. This instrument covers 9 kHz to 3 GHz with excellent phase noise and stable amplitude modulation. Its comprehensive sweep functions, multiple modulation modes including AM, FM, and pulse, combined with user-friendly GUI and USB connectivity, make it ideal for research, calibration, and production testing. Secure reliable online ordering to enhance your signal generation capabilities with precision and ease.
Buy Keysight N9310A RF Signal Generator now and experience unmatched reliability and precise RF testing for your engineering needs.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES N9310A?
You can click on the BUY or RFQ button to purchase N9310A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part N9310A?
You can download the N9310A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of N9310A?
KEYSIGHT TECHNOLOGIES
