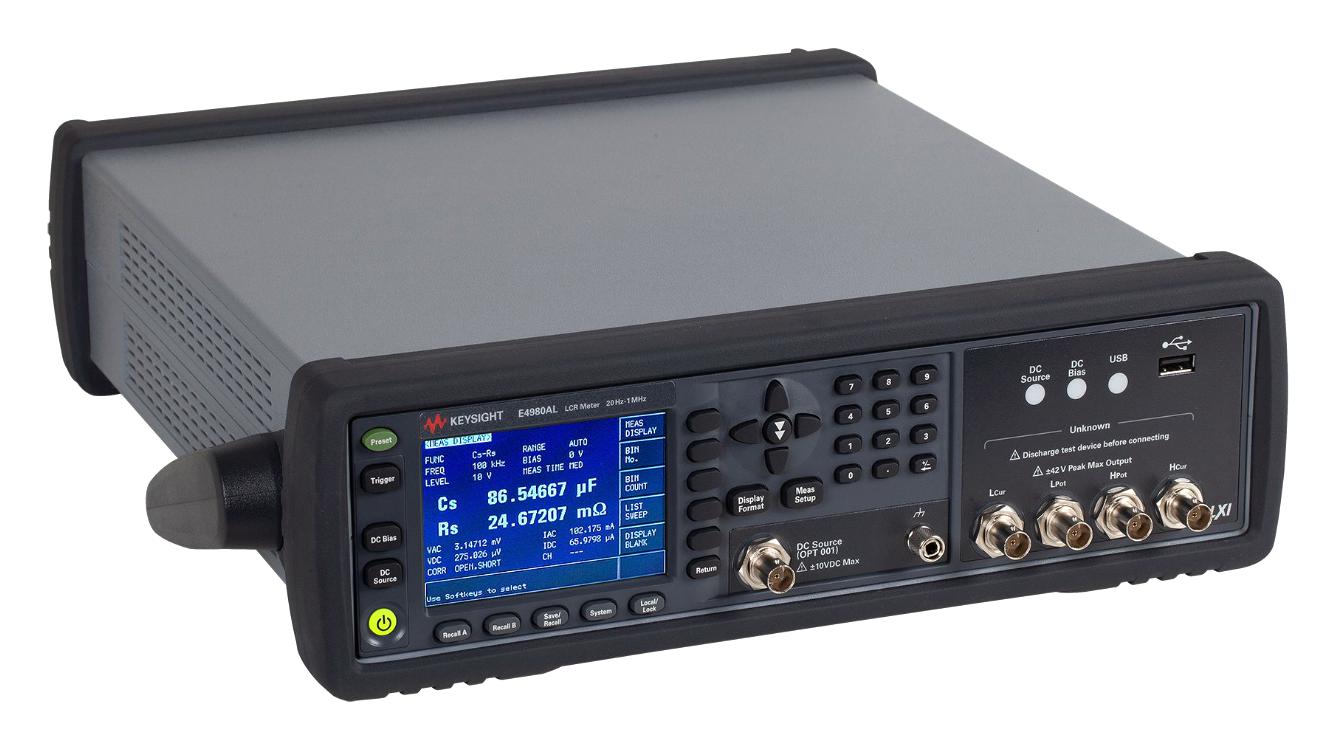

KEYSIGHT TECHNOLOGIES E4980AL032 High-Precision Impedance Meter
The E4980AL-032 is a high-precision LCR meter offering exceptional accuracy, speed, and versatility for impedance, inductance, and capacitance measurements across broad component ranges. It provides fast, reliable performance suitable for R&D and manufacturing testing of electronic components and materials. Supporting over twenty fixtures for various evaluations—materials testing, SMD measurement—it features built-in compensation to mitigate fixture influence. Its low-noise design ensures repeatable readings. The device includes a DC bias source, high-resolution LCD, and connectivity via LAN, USB, and GPIB, with features like auto-level control, open/short/load compensation, external trigger, and sixteen impedance parameters.
KEYSIGHT TECHNOLOGIES E4980AL032 High-Precision Impedance Meter Specifications:
- Frequency range: 20 Hz to 300 kHz
- Measurement parameters: Cp-D, Cs-Q, Lp-G, Rs, Rp, Z, Y, G, B, Vde, Ide
- Test signal voltage: 0 Vrms to 2 Vrms, accuracy ±10% + 1 mVrms
- Test signal current: 0 Arms to 20 mArms, accuracy ±10% + 10 pArms
- Impedance measurement accuracy: ±0.01% to ±0.1% depending on parameters
- Display: High-resolution LCD, 320 x 240 pixels
- Connectivity: LAN, USB (host and device), GPIB
- Built-in DC voltage bias source: 0 V to +2 V, resolution 100 μV
- Built-in DC current bias: 0 A to 100 mA, resolution 1 μA
- Measurement time modes: Short, Medium, Long (with timing depending on frequency)
- Dimensions: 375 mm (W) x 105 mm (H) x 390 mm (D), weight: Approx. 5.3 kg
- Calibration accuracy: 0.03%, repeatability suitable for high-precision applications
- Environmental: Operation 0°C to 55°C, humidity 15–85%, altitude up to 2000 m
- Standards compliance: IEC 61326-1, CISPR 11, EN 61000-4 series
- Accessories: Includes test leads, calibration kit, and interface cables
Buy the Keysight E4980AL032 – Reliable Impedance Analyzer for Electronic Testing
Purchase the Keysight E4980AL-032 online today—engineered for precise impedance, inductance, and capacitance testing with fast measurement times. Its versatile design supports multiple fixtures and built-in compensation to ensure accurate readings across various components and materials. The device's reliable performance is ideal for R&D, manufacturing, and quality assurance. Featuring user-friendly operation, high-resolution display, and multiple connectivity options including LAN, USB, and GPIB, it offers comprehensive measurement functionalities. Upgrade your electronic testing capabilities with this advanced LCR meter for consistent, high-accuracy results.
Get Keysight E4980AL-032 today—built for precision and long-lasting durability in impedance measurements.
