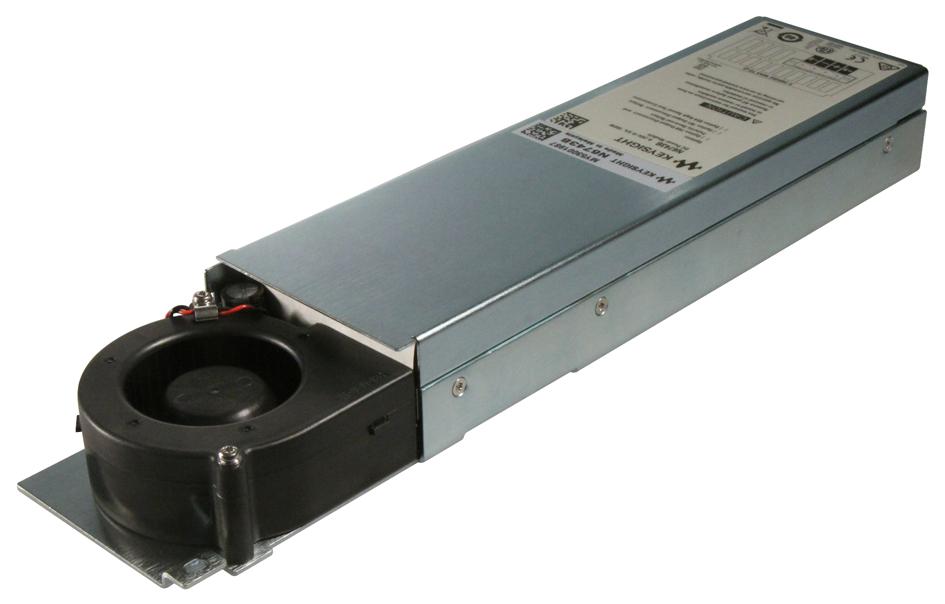

KEYSIGHT TECHNOLOGIES N6743B Programmable DC Power Module
The Keysight N6743B is a 20V, 5A, 100W programmable DC power module designed for precise voltage and current control, measurement, and protection. It is ideal for Automated Test Equipment systems in research, development, and manufacturing environments. Its compact size allows up to four outputs in 1U rack space, providing flexible modular configurations to optimize performance and efficiency. Supporting fast command processing, voltage, and current measurement, it enhances test throughput. Connectivity options include GPIB, LAN, and USB, and it fully adheres to LXI Class C standards, making it suitable for power management and test applications.
KEYSIGHT TECHNOLOGIES N6743B Programmable DC Power Module Specifications:
- Voltage Range: 20 V
- Current Range: 5 A
- Power Rating: 100 W
- Measurement Accuracy Voltage: 0.1% + 20 mV
- Measurement Accuracy Current: 0.15% + 20 mA
- Ripple & Noise Voltage (p-p/rms): 14 mV/3 mV
- Ripple & Noise Current (p-p/rms): 20 mA
- Output Disconnect Relays: Option 761
- Connectivity: GPIB, LAN (10/100 Base-T), USB 2.0
- Compliance: LXI Class C
- Size: 44.45 mm / 1.75 in. high, 432.5 mm / 17.03 in. wide, 633.9 mm / 24.96 in. deep
- Operating Environment: 0°C to 55°C, up to 95% humidity, up to 2000 meters altitude
- Input Voltage: 100-240 VAC, 50/60/400 Hz
- Power Consumption: 1440 VA (N6743B)
- Weight: 14.09 kg / 31 lbs.
Buy the Keysight Series N6700N6743B: 20V 5A 100W Programmable DC Power Module
Upgrade your automated test equipment with the Keysight N6743B 20V, 5A, 100W programmable power module. Featuring fast command processing, high accuracy measurements, and multiple connectivity options, it ensures efficient and reliable power delivery for research, development, and manufacturing. Its modular design allows up to four outputs in a compact 1U rack space, optimizing your test setup and throughput. Fully LXI Class C compliant, it supports power management and high-speed testing applications, making it an essential tool for modern electronic testing and power control environments.
Order your Keysight Series N6743B 20V 5A 100W power module today and enhance your automated test systems with precise measurement and reliable performance.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES N6743B?
You can click on the BUY or RFQ button to purchase N6743B from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part N6743B?
You can download the N6743B datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of N6743B?
KEYSIGHT TECHNOLOGIES
