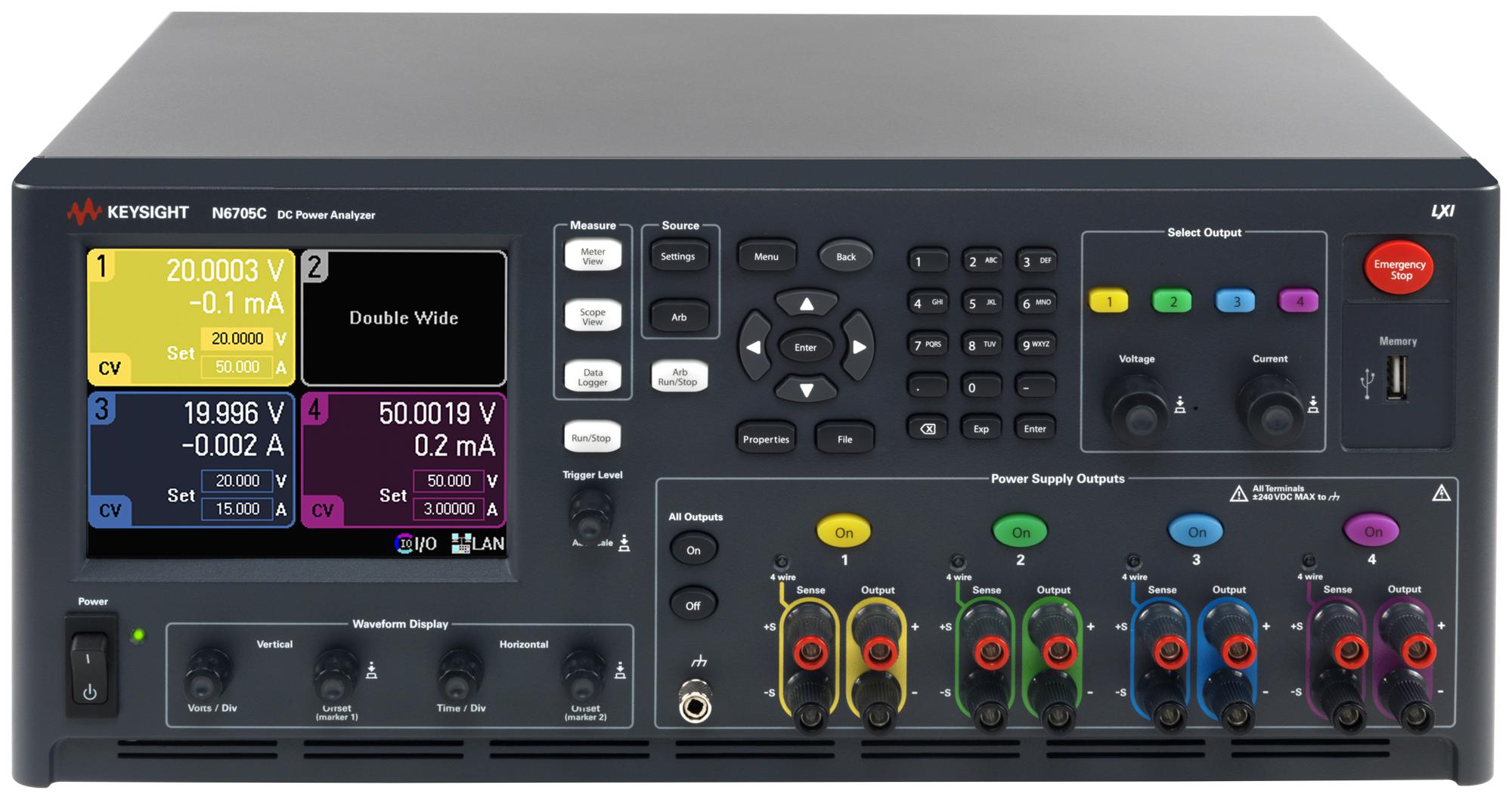

KEYSIGHT TECHNOLOGIES N6705C DC Power Analyzer
The N6705C from Keysight Technologies is a modular, 600W, four-slot DC power analyzer designed to enhance productivity in sourcing and measuring DC voltage and current into the device under test (DUT). It combines the functions of up to four advanced power supplies with digital multimeter (DMM), oscilloscope, arbitrary waveform generator (Arb), and data logger features into a single instrument. This integration eliminates the need for multiple equipment setups, transducers, and programming to control separate instruments, as all functions are accessible via the front panel. The analyzer also supports extended control and analysis through accompanying software. It features an intuitive interface with physical controls, a large color display for complex data visualization, and color-coded connections for quick setup. The device is programmable via GPIB, LAN, and USB interfaces, with LXI compliance.
KEYSIGHT TECHNOLOGIES N6705C DC Power Analyzer Specifications:
- Power Rating: 600 W
- Slots: 4 for DC modules
- Interfaces: GPIB, LAN, USB 2.0
- Input Voltage: 100-240 VAC, 50/60/400 Hz
- Power Consumption: 1440 VA
- Dimensions (HxWxD): 194.7 mm x 425.6 mm x 313 mm
- Weight: 16 kg / 35 lbs
- Output Voltage Range: Up to 150 V (depending on modules)
- Current Range: Up to 50 A (depending on modules)
- Remote Sensing: 4-wire sensing for high accuracy
- Display: Large color graphics with dedicated controls
- Data Logging: Internal memory and external USB support
- Waveform Generation: Built-in arbitrary waveform generator with up to 512 points
- Sequencing: Individual module turn on/off with programmable delays
- Protection: Over-voltage, over-current, over-temperature
- Compliance: LXI Class C
- Environmental: Temp 0°C to 55°C, humidity up to 95%, altitude up to 2000 m
Buy the Buy Keysight N6705C Modular Power System Mainframe 600W Online
Enhance your test setups with the Keysight N6705C modular DC power analyzer. This versatile instrument combines four power modules, digital multimeter, oscilloscope, waveform generator, and data logger into one compact device. Designed for R&D, design validation, and manufacturing, it offers fast, accurate measurements, programmable sequencing, remote sensing, and extensive control options via GPIB, LAN, or USB. Its large color display provides clear data visualization, simplifying complex testing tasks. Purchase online now for efficient, reliable DC power testing and analysis.
Get Keysight N6705C today—built for reliable, high-speed sourcing and measuring of DC power with integrated waveform and data logging features.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES N6705C?
You can click on the BUY or RFQ button to purchase N6705C from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part N6705C?
You can download the N6705C datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of N6705C?
KEYSIGHT TECHNOLOGIES
