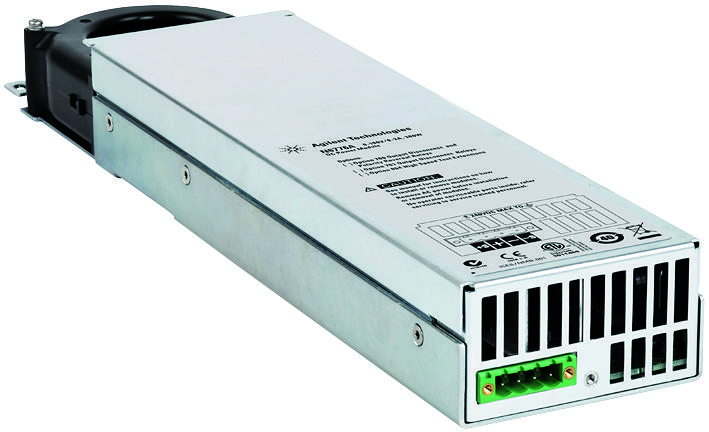

KEYSIGHT TECHNOLOGIES N6776A DC Power Module
The Keysight N6776A is a high-performance DC power module delivering 100V, 3A, and 300W with programmable voltage/current, measurement, and protection features. It’s ideal for automated test setups in research, development, and manufacturing, offering fast response times, modular flexibility, and compact design to fit multiple units in a 1U rack space. Connectivity includes GPIB, LAN, and USB with LXI Class C compliance, making it suitable for critical testing environments requiring reliable and customizable power delivery with precise control and measurement capabilities.
KEYSIGHT TECHNOLOGIES N6776A DC Power Module Specifications:
- Voltage Range: 0-100V
- Current Range: 0-3A
- Power Output: 300W
- Output Ripple and Noise (PARD): Peak-to-peak 45 mV, RMS 5 mV
- Regulation: Load Voltage 13 mV, Load Current 6 mA, Source Voltage 2 mV, Source Current 1 mA
- Programming Accuracy: Voltage 0.1% + 20 mV, Current 0.15% + 60 mA
- Measurement Accuracy: Voltage 0.1% + 25 mV, Current 0.15% + 13.5 mA
- Transient Recovery Time: < 100 us
- Output Response: Rise time 2.8 µs, Settling time < 35 ps
- Measurement Resolution: Voltage 10 mV, Current 1.4 µA
- Remote Sense: Capable of maintaining performance with up to 1V load lead drop
- Protection Features: Over-voltage, Reverse polarity, and Over-current protection
- Communication: GPIB, LAN, USB (standard), LXI Class C
- Physical Dimensions: Approximately 145 mm x 89 mm x 46 mm
- Weight: About 2.7 kg
Buy the Keysight N6776A – Reliable DC Power for Industrial Applications
Purchase the Keysight N6776A today for high-precision, reliable DC power delivery. Designed for automated testing, it offers programmable voltage, current, fast response, and comprehensive measurement features. Compact size fits in 1U rack, making it ideal for R&D, manufacturing, and design validation. Connectivity options include GPIB, LAN, and USB, ensuring seamless integration into your test systems. Trust Keysight's quality for consistent, accurate power with advanced protection features to meet your critical test needs.
Get Keysight N6776A today—built for precision and long-lasting durability in automated testing environments.
