KEYSIGHT TECHNOLOGIES PP0002A Oscilloscope Probe

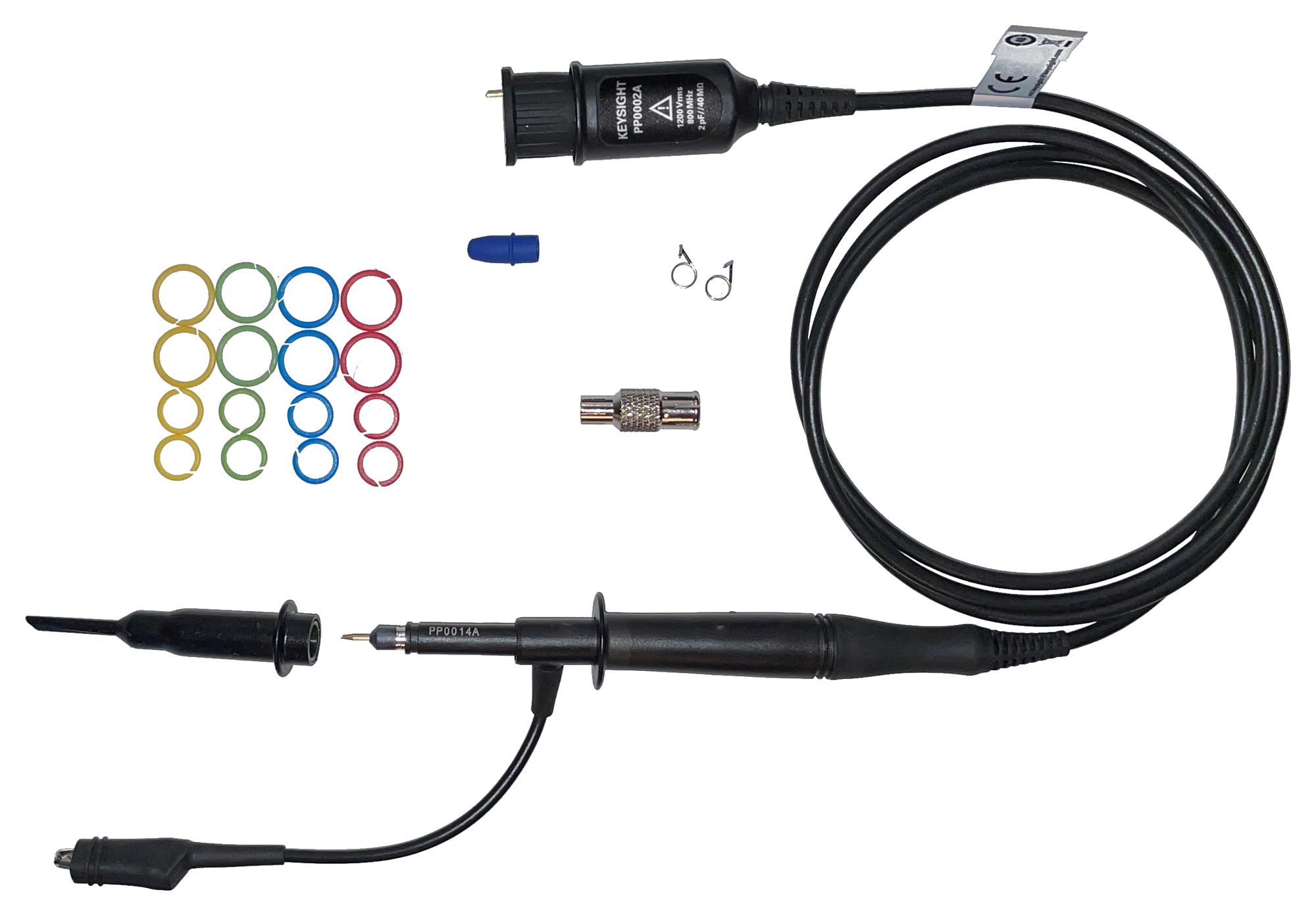

The PP0002A is a high-voltage passive oscilloscope probe with an 800 MHz bandwidth and less than 2 pF capacitance, supporting up to 1200 Vrms CAT II voltage and peak transients of 3 kV. It features a 40 MΩ input impedance at low frequencies, compatible with AutoProbe I interface for automatic offset and attenuation adjustment. Its 1.3-meter cable, compact 5mm tip, and replaceable cartridges ensure easy operation. Comes with a comprehensive accessory set, including color-coded rings, grabbers, ground clips, adapters, protective covers, making it suitable for InfiniiVision and Infiniium oscilloscopes.
KEYSIGHT TECHNOLOGIES PP0002A Oscilloscope Probe Specifications:
- Bandwidth: 800 MHz
- Capacitance: Less than 2 pF
- Input Voltage: 1200 Vrms CAT II
- Peak Transient Voltage: 3 kV
- Input Impedance: 40 MΩ at low frequencies
- Cable Length: 1.3 meters
- Tip Size: 5 mm, replaceable cartridges
- Connector: Compatibility with AutoProbe I interface
- Accessories: Color-coded channel rings, grabbers, ground clips, adapters, protective covers
- Compatible With: InfiniiVision and Infiniium oscilloscopes via PP0004A adapter
Buy the Buy Keysight Oscilloscope Probe Part Number PP0002A Online
Purchase the Keysight PP0002A high-voltage passive oscilloscope probe online today. Its 800 MHz bandwidth, low capacitance, and compatibility with Advanced AutoProbe interfaces ensure accurate measurements up to 1200 Vrms. Designed with a 1.3-meter cable, small 5mm tip, and replaceable cartridges, it offers excellent ease of use and versatility for small targets and high-voltage testing. Complete with accessories like color-coded rings, grabbers, ground clips, and protective covers, this probe is ideal for InfiniiVision and Infiniium oscilloscopes for reliable testing.
Order your Keysight PP0002A high-voltage passive probe today and enhance your oscilloscope testing with precision and reliability.
