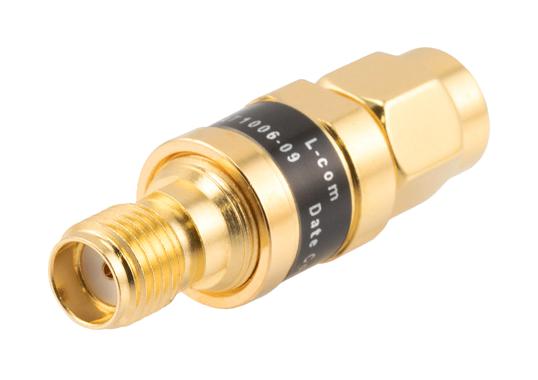

L-COM LCAT100609 RF Fixed Attenuator
The 2W/9 GB Fixed Attenuator with SMA male to SMA female connectors is designed for high-frequency applications up to 18 GHz. Crafted from brass with a gold-plated body, it features a 9 dB attenuation accuracy, a VSWR of 1.36:1, and handles up to 2 Watts CW power. The compact dimension of 1.18 inches in length and 0.393 inches in diameter makes it suitable for instrumentation, prototyping, and precision measurements. Its robust construction ensures reliable performance in demanding environments from -55°C to +125°C, ideal for impedance matching and signal attenuation tasks in RF systems.
L-COM LCAT100609 RF Fixed Attenuator Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Nominal Attenuation: 9 dB
- Attenuation Accuracy: 1.4 dB
- VSWR: 1.36:1
- Input Power, CW: 2 Watts
- Input Power, Peak: 500 Watts
- Operating Temperature Range: -55°C to +125°C
- Body Material: Brass, Gold-plated
- Connector Type: SMA Male to SMA Female
- Size: Length 1.18 in (29.97 mm), Diameter 0.393 in (9.98 mm)
- Weight: 0.022 lbs (9.98 g)
- Coupling Nut Material: Brass, Gold-plated
- Hex Size: 5/16 inch
- Construction: Fixed, Connectorized module
Buy the INFINITG 2W/9 GB Fixed Attenuator – Reliable RF Attenuation for Industrial Applications
Secure your RF measurement and signal attenuation requirements today with the INFINITG fixed attenuator. Designed for high-frequency applications up to 18 GHz, it features a rugged brass body with gold plating, ensuring durability and excellent signal integrity. With a 9 dB attenuation level and handling capacity of 2 Watts CW, this compact device is perfect for instrumentation, prototyping, and precise calibration in demanding environments. Trust INFINITG for quality RF components to optimize your test systems and communication setups.
Buy INFINITG 2W/9 GB Fixed Attenuator now and experience unmatched reliability and RF performance for your industrial and testing needs.
Frequently Asked Questions
Where can I buy L-COM LCAT100609?
You can click on the BUY or RFQ button to purchase LCAT100609 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100609?
You can download the LCAT100609 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100609?
L-COM
