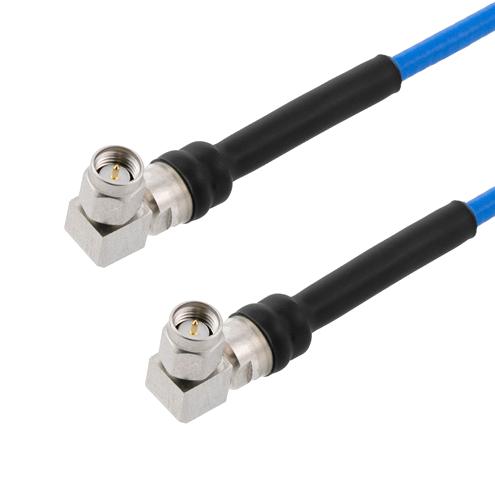

L-COM LCCA30004FT3 RF Coaxial Cable
L-com's LCCA30004 cable assembly features a 3.0 ft coaxial cable with SMA male right angle connectors on both ends, using the durable 402SS Series coax. Designed for high-frequency applications, it operates up to 18 GHz with excellent shielding over 110dB, ideal for laboratory and general purpose RF setups. The assembly includes a heavy-duty boot for strain relief, with a flexible FEP jacket, and stainless-steel connectors that ensure long-term reliability in tight spaces and demanding environments. Suitable for automated test systems and RF interconnects needing high performance and durability.
L-COM LCCA30004FT3 RF Coaxial Cable Specifications:
- Frequency Range: 0 to 18 GHz
- Impedance: 50 Ohms
- Insertion Loss: Max 0.864 dB at 3 GHz, 1.667 dB at 10 GHz, 2.345 dB at 18 GHz
- Shielding Effectiveness: > 110dB
- Velocity of Propagation: 70%
- Capacitance: 29.4 pF/ft
- Cable Length: 3.0 ft
- Cable Type: 402SS Series coaxial cable
- Connector Type: SMA Male Right Angle
- Connector Material: Brass, Gold-plated
- Jacket Material: FEP (Tan)
- Outer Diameter: 0.163 in (4.14 mm)
- Maximum Repeated Bends: 1 in (25 mm)
- Weight: 0.18 lbs (81.65 g)
- Operating Temperature Range: -55°C to +165°C
- Connector Impedance: 50 Ohms
- Connector Standards: MIL-STD-348A
- Heavy Duty Boot: Yes
Buy the INFINITG Series RF Coaxial Cable: LCCA30004
Get the high-performance INFINITG LCCA30004 coaxial cable online today. This 3 ft SMA right angle to right angle assembly features durable stainless-steel connectors, a heavy-duty boot, and shielding over 110dB for excellent interference protection. Operating up to 18 GHz, it’s ideal for RF testing, laboratory, and industrial applications where flexibility and durability are critical. With fast same-day shipping, secure your RF connections with this reliable and flexible component designed for tight spaces and demanding environments.
Order your INFINITG Series LCCA30004 rugged coaxial cable today and give your RF projects the dependable high-frequency reliability they deserve.
Frequently Asked Questions
Where can I buy L-COM LCCA30004FT3?
You can click on the BUY or RFQ button to purchase LCCA30004FT3 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30004FT3?
You can download the LCCA30004FT3 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30004FT3?
L-COM
