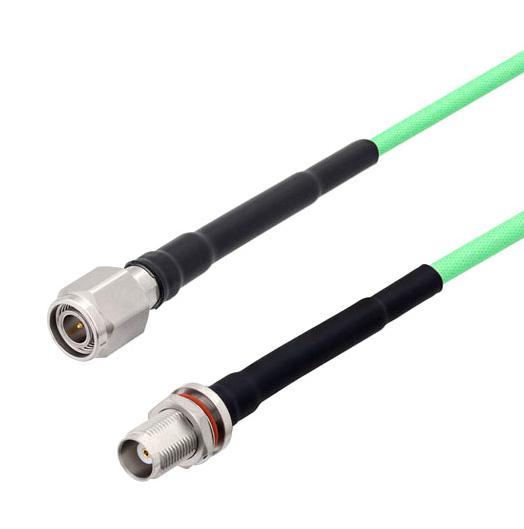

L-COM LCCA30024FT2 RF Coaxial Cable Assembly
The LCCA30024-FT2 is a low loss TNC male to TNC female bulkhead cable assembly with heavy-duty heat shrink boot, using LL142 coax for flexible RF connections up to 18 GHz. It features triple shielding with silver-plated copper tape and braid for 95dB shield effectiveness, a tape wrapped PTFE dielectric with 80% VoP for minimal insertion loss, and durable stainless-steel connectors. Designed for high-performance test systems, antenna ranges, and long cable runs, it supports quick installation and reliable connectivity with a 2-foot length and stable impedance of 50 Ohms.
L-COM LCCA30024FT2 RF Coaxial Cable Assembly Specifications:
- Frequency Range: Dc to 18 GHz
- Impedance: 50 Ohms
- Insertion Loss: Max. 0.28 dB at 18 GHz
- Shielding Effectiveness: Greater than 95dB
- Dielectric: Tape wrapped PTFE with 80% VoP
- Inner Conductor: Copper, Silver plated
- Outer Conductor: Silver plated copper tape and braid
- Connector Types: TNC Male to TNC Female Bulkhead
- Cable Length: 2 FT (609.6 mm)
- Cable Diameter: 0.195 inches (4.95 mm)
- Weight: 0.097 lbs (44 g)
- Jacket Material: FEP, Green
- Min. Bend Radius: 0.975 inches (24.77 mm)
- Operating Temperature Range: -55°C to +200°C
- Connector Body Material: Passivated Stainless Steel
- Boot Material: Heavy Duty Heat Shrink
- Connector Plating: Gold over Nickel
Buy the InfinetG Series RF Coaxial Cable: LCCA30024
Purchase the InfinetG Series RF Coaxial Cable assembly today for high-performance RF testing, long cable runs, and antenna connection needs. Featuring low insertion loss, triple shielding, and durable stainless-steel connectors, this 2-foot assembly operates up to 18 GHz, ensuring optimal signal integrity. Ideal for automated test equipment, laboratory setups, and communication systems, it offers easy installation with a heavy-duty heat shrink boot for enhanced durability. Buy now online to get fast shipping and dependable connectivity for your RF applications.
Order your InfinetG Series RF Coaxial Cable with heavy-duty boot and 18 GHz bandwidth today and ensure reliable high-frequency connections for your projects.
