L-COM LCCA30003FT2 RF coaxial cable

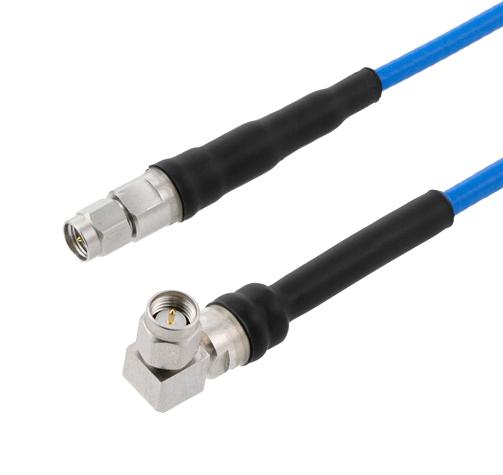

L-com's SMA to SMA right angle coaxial cable assembly features a 2.0 ft length, operating up to 18 GHz with excellent shielding effectiveness over 110dB. Made with durable stainless steel connectors and a heavy-duty FEP jacket, this flexible cable is ideal for tight spaces and high-frequency applications. Its double shielding, including silver-plated copper tape and braid, ensures minimal signal loss and interference. Suitable for general-purpose and laboratory RF interconnects, automated test systems, and other demanding environments, offering reliable performance and easy installation with precision connectors.
L-COM LCCA30003FT2 RF coaxial cable Specifications:
- Frequency Range: 0 to 18 GHz
- Impedance: 50 Ohms
- VSWR: 1.41
- Insertion Loss: Max 0.599 dB at 3 GHz, 1.62 dB at 18 GHz
- Velocity of Propagation: 70%
- RF Shielding: > 110dB
- Capacitance: 29.4 pF/ft
- Connector Type: SMA Male to SMA Male Right Angle
- Body Material: Brass, Nickel Plated
- Contact Material: Brass, Gold Plated
- Jacket Material: FEP, Tan
- Cable Type: 402SS series coax
- Cable Diameter: 0.315 in
- Length: 24 in (2 ft)
- Weight: 0.15 lbs
- Repeated Minimum Bend Radius: 1 in
- Operating Temperature Range: -55°C to +165°C
- Shield Layers: Silver Plated Copper Tape and Braid
- Dielectric: PTFE
Buy the L-com Series RF Coaxial Cable: LCCA30003FT2
Purchase the L-com Series RF coaxial cable LCCA30003FT2 now for high-performance signals up to 18 GHz. Featuring durable stainless steel connectors, heavy-duty FEP jacket, and exceptional shielding over 110dB, this flexible 2-foot cable is perfect for tight spaces and demanding RF applications. Ideal for laboratory, test systems, and general-purpose use, it guarantees minimal signal loss and interference. Fast same-day shipping ensures immediate deployment for your projects. Buy online today and enjoy reliable, high-quality RF connectivity built to last.
Order your L-com Series coaxial cable LCCA30003FT2 today and ensure high-frequency reliability with superb shielding and durable construction.
