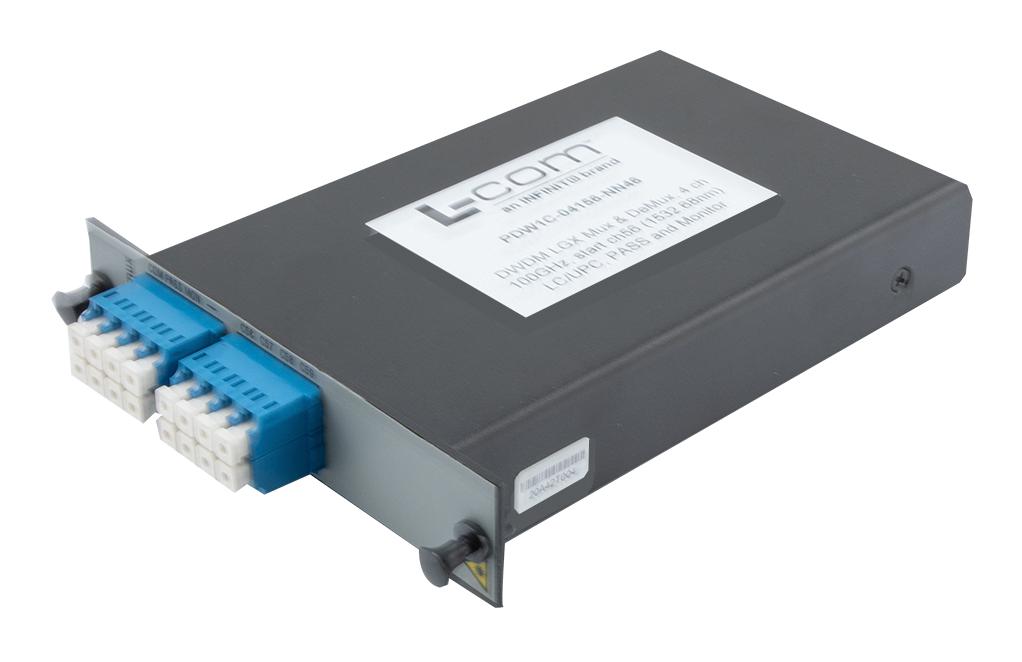

L-COM PDW1C04156NN46 DWDM Filter Module
This premium LGX filter module features four DWDM channels, supporting multiplexing and demultiplexing in single-mode fiber networks, ideal for metro transport and inside plant operations. It includes LC/UPC connectors, optional monitor ports, and an express channel bypass for seamless upgrades. Operating at channels starting 1532.68 nm with 100 GHz spacing, the dual fiber design transmits a multiplexed signal and receives a composite demuxed signal. Its robust specifications ensure reliable performance in regionally distributed optical networks, making it a versatile solution for high-capacity fiber-optic communication systems.
L-COM PDW1C04156NN46 DWDM Filter Module Specifications:
- Connector Type: LC/UPC
- Number of Channels: 4
- Module Function: Mux/DeMux
- Filter Type: DWDM
- Operating Wavelength: 1527.22 to 1564.68 nm
- Pass Port Wavelength: 1527.22 to 1564.68 nm
- Pass Port Insertion Loss: 2 dB
- Pass Port Isolation: 12 dB
- Pass Band: 0.68 to 0.93 nm
- Pass Band Ripple: 0.5 dB
- Center Wavelength (Channel): 1530.33 to 1532.68 nm
- Channel Spacing: 0.83 nm
- Channel Insertion Loss: 25 dB
- Return Loss: 45 dB
- Directivity: 50 dB
- PDL: 0.25 dB
- PMD: 0.2 Ps
- Power Handling: 300 mW
- Adjacent Channel Isolation: 28 dB
- Non-Adjacent Channel Isolation: 40 dB
- Channel to Monitor Port IL: 25 dB
- COM to Monitor Port IL: 23 dB
- IL Thermal Stability: 0.005 dB/°C
- Wavelength Thermal Stability: 0.002 nm/°C
- Operating Temperature Range: -20 to +65°C
- Storage Temperature Range: -40 to +85°C
- Humidity: 5-95% RH
- Certifications: Compliance certified as per product standards
Buy the L-com PDW1C04156NN46 – Reliable DWDM Filter for Industrial Applications
Enhance your fiber optic network with the high-quality DWDM Filter Module. Featuring four channels, LC/UPC connectors, and 100 GHz spacing, it supports advanced multiplexing and demultiplexing needs for metro and inside plant applications. Its dual fiber design allows simultaneous transmission and reception of multiplexed and demuxed signals, ensuring optimal performance in high-capacity networks. With optional monitor ports and an express channel feature, this module delivers easy upgrades and flexible deployment for reliable, long-term connectivity in demanding environments. Purchase online today for fast delivery.
Buy L-com PDW1C04156NN46 now and experience unmatched reliability and performance in fiber optic communication systems.
