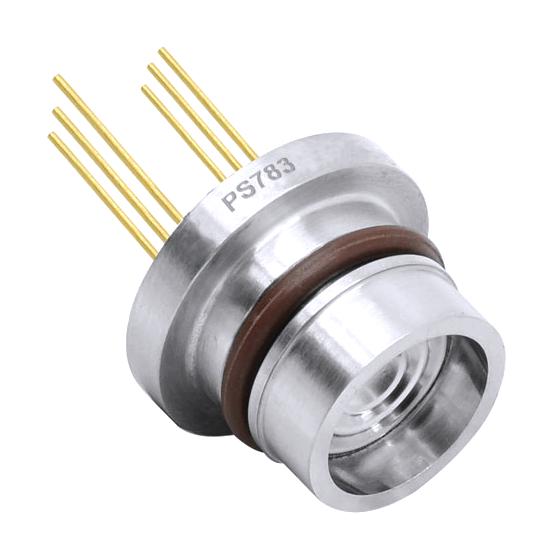

L-COM PS783I07GL1 Pressure Sensor
The PS783-107GL1 pressure sensor is a compact, highly stable gauge pressure sensor designed for industrial applications. Featuring stainless steel 316L housing with a 12.6 mm diameter and wide temperature compensation, it accurately measures pressures up to 200 kPa. Suitable for measuring liquids and gases, it offers excellent linearity, repeatability, and long-term stability. Its robust construction, including a Viton O-ring and Kovar pin, ensures durability in various environments. Ideal for use in pressure calibration, liquid systems, cooling, and aerospace inspections, it provides reliable electrical signals for precise fluid pressure monitoring.
L-COM PS783I07GL1 Pressure Sensor Specifications:
- Pressure Range: 0-200 kPa
- Housing Material: Stainless Steel 316L
- Diameter: 12.6 mm
- Linearity: +0.15 to +0.2 % Full Scale
- Repeatability: +0.05 to +0.075 % Full Scale
- Hysteresis: +0.05 to +0.075 % Full Scale
- Full Scale Output: 70 mV DC
- Zero Output: 3 mV DC
- Temperature Compensation Range: -10°C to 80°C
- Long Term Stability: +0.1 to +0.2 % Full Scale
- Overpressure Limit: 1.5 x Full Scale
- Response Time: 1 msec
- Power Supply: 10 VDC, 2 mA
- Media Temperature Tolerance: up to 351°C
- Operation Temperature: -40°C to 125°C
- Shock Resistance: 100g, 11ms
- Certifications: RoHS, CE compliant
Buy the Buy INFINITG Pressure Sensor Part Number PS783-107GL1 Online
Purchase the INFINITG PS783-107GL1 pressure sensor online today and enjoy reliable, accurate measurement for various industrial and aerospace applications. Its compact stainless steel design, wide temperature compensation, and excellent stability make it an ideal choice for liquid and gas pressure monitoring, calibration, and inspection. With a measurement range of 0-200kPa and fast response, this sensor ensures precision and durability in demanding environments. Order now to enhance your process control, level measurement, and HVAC systems with proven quality.
Get INFINITG PS783-107GL1 today—designed for precise pressure measurement and durability in industrial and aerospace environments.
Frequently Asked Questions
Where can I buy L-COM PS783I07GL1?
You can click on the BUY or RFQ button to purchase PS783I07GL1 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part PS783I07GL1?
You can download the PS783I07GL1 datasheet or visit the L-COM website for support.
Who is the manufacturer of PS783I07GL1?
L-COM
