L-COM LCCA30004FT15 RF Coaxial Cable Assembly
L-com's LCCA30004-FT1.5 cable assembly features an SMA male right angle connector on both ends, utilizing 402SS Series coaxial cable with a heavy-duty boot. Designed for high-frequency applications, it operates up to 18 GHz with excellent shielding (>110 dB) and low insertion loss. This 1.5-foot flexible, durable cable with double shielding offers ease of installation in tight spaces, supporting laboratory, general purpose, and automated test systems. Its high-quality stainless steel connectors ensure long-lasting performance, making it ideal for RF signal transmission in demanding environments.
L-COM LCCA30004FT15 RF Coaxial Cable Assembly Specifications:
- Frequency Range: 18 GHz
- Impedance: 50 Ohms
- Insertion Loss: 0.519 dB (3 GHz), 0.674 dB (5 GHz), 0.992 dB (10 GHz), 1.385 dB (18 GHz)
- VSWR: 1.41
- Velocity of Propagation: 70 %
- RF Shielding: 110 dB
- Capacitance: 29.4 pF/ft
- Cable Length: 1.5 ft
- Diameter: 0.315 in
- Weight: 0.12 lbs
- Cable Type: 402SS Series
- Connector Type: SMA Male Right Angle
- Body Material: Brass, Nickel Plating
- Contact Material: Brass, Gold Plated
- Dielectric: PTFE
- Shield Layers: Silver Plated Copper Tape & Braid
- Jacket Material: FEP, Tan
- Repeated Minimum Bend Radius: 1 in
- Operating Temperature Range: -55°C to +165°C

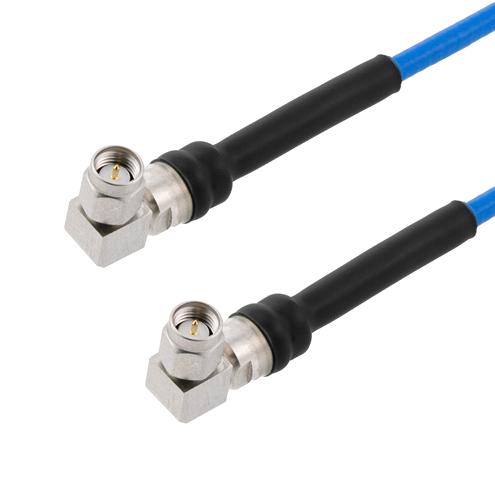

Buy the Buy Infinite Electronics SMA Male Right Angle Part Number LCCA30004-FT1.5 Online
Order the Infinite Electronics SMA male right angle coax cable assembly LCCA30004-FT1.5 online today. This durable 1.5-foot cable supports frequencies up to 18 GHz with excellent shielding (>110 dB). Its flexible design, heavy-duty boot, and stainless-steel connectors make installation in tight spaces easy and reliable. Perfect for laboratory, general purpose, or automated test systems, this high-performance RF cable offers low insertion loss, exceptional shielding, and extended durability, ensuring optimal signal transmission for demanding RF applications.
Buy Infinite Electronics SMA Male Right Angle cable LCCA30004-FT1.5 now and experience unmatched reliability and performance in high-frequency RF applications.
Frequently Asked Questions
Where can I buy L-COM LCCA30004FT15?
You can click on the BUY or RFQ button to purchase LCCA30004FT15 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30004FT15?
You can download the LCCA30004FT15 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30004FT15?
L-COM
