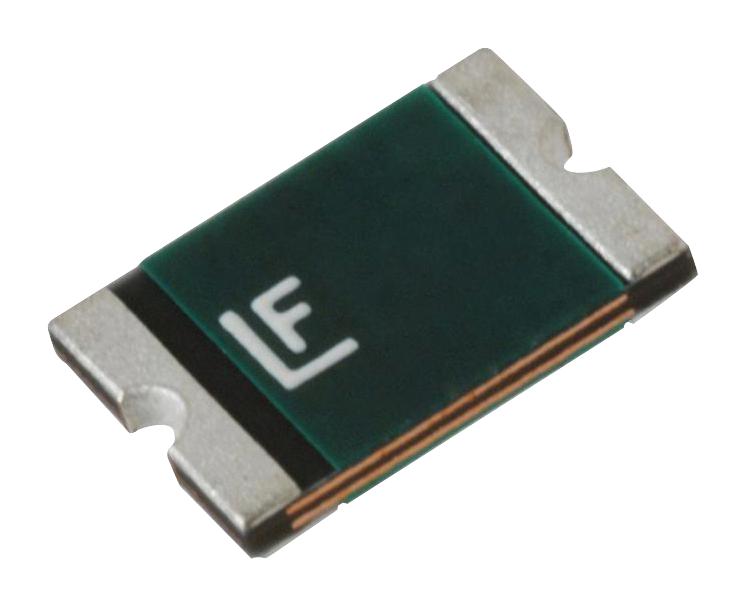

Littelfuse 2920L33024MR Resettable PTC Thermistor
The 2920L Series resettable PTC thermistors are surface-mount overcurrent protection devices designed for medium voltage (<60V) applications where reusability is essential. These high-voltage, halogen-free, RoHS compliant components provide fast fault response and are suitable for protecting telecom ports, powered ethernet equipment, and automotive electronic control modules. With a compact, low-profile design, they ensure reliable protection by limiting fault currents and discharging overcurrent conditions efficiently, making them ideal for industrial, networking, and automotive applications.
Littelfuse 2920L33024MR Resettable PTC Thermistor Specifications:
- Maximum Voltage: <60V
- RoHS compliant, lead-free, halogen-free
- Profiles: Low-profile, surface mount
- Response Time: Fast fault current response
- Operating Temperature Range: -20°C to 85°C (temperature rerating applies)
- Resistance Range: 0.30 to 6.25 Ohms (varies by model)
- Dissipation Power: Specified at rated current without damage
- Minimum Soldering Profile: Peak 260°C, preheat 150°C-200°C for 60-180 seconds
- Maximum device surface temperature: 150°C
- Material: Solder-plated copper, Tin (Sn) terminal material
- Environmental Resistance: Suitable for humidity, thermal shock, vibration, and solvent exposure
- Reflow Compatibility: IR, vapor phase, hot air oven reflow methods
- Reel Packaging: Tape & Reel, quantities vary from 1000 to 10,000 units depending on model
Buy the Buy Littelfuse 2920L Series PTC Part Number 2920L33024MR Online
Purchase the Littelfuse 2920L33024MR resettable PTC thermistor online for top-quality medium voltage overcurrent protection. Ideal for telecom ports, powered ethernet, and automotive control modules, this surface-mount device offers fast fault response, RoHS compliance, halogen-free design, and a compact low-profile structure. Easy to install with reliable reflow compatibility, it ensures safe operation under overcurrent conditions, reducing downtime and preventing damage. Order now for dependable, reusable protection in industrial and networking systems.
Get Littelfuse 2920L33024MR today—built for reliable overcurrent protection in telecom and automotive applications.
Frequently Asked Questions
Where can I buy Littelfuse 2920L33024MR?
You can click on the BUY or RFQ button to purchase 2920L33024MR from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 2920L33024MR?
You can download the 2920L33024MR datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 2920L33024MR?
Littelfuse
