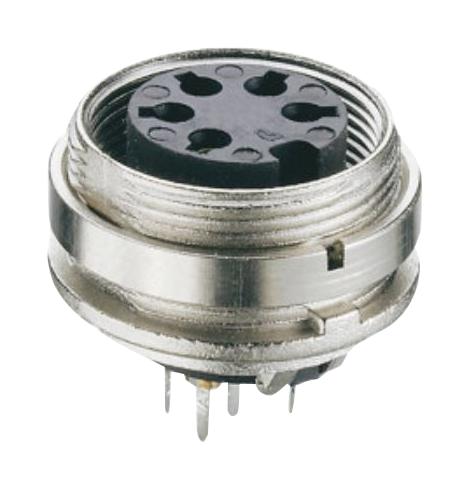

LUMBERG KGR60 industrial circular connector
The KGR60 is a high-quality circular connector with threaded joint M16 according to IEC 61076-2-106. Designed for industrial applications, it features IP40 protection, suitable for printed circuit board mounting on the back side. Made with durable materials including zinc diecast housing and copper-zinc contact bushings, it handles temperature ranges from -40°C to +85°C. Its mechanical specifications include a tightening torque of 13 Nm, contact resistance of 5 mΩ, and rated currents of 3A or 5A depending on poles, ensuring reliable electrical connection in demanding environments.
LUMBERG KGR60 industrial circular connector Specifications:
- Environmental Conditions: Temperature range -40°C to +85°C
- Housing Material: Zinc diecast, pre-copper and nickel-plated
- Contact Material: Copper-Zinc, silver-plated and gold-flash in solder areas
- Rated Current: 3A (12 poles), 5A (3-8 poles)
- Rated Voltage: 250 V (pollution degree 2), 300 V (pollution degree 1)
- Overvoltage Category: I (UL), 600 V rated impulse voltage
- Contact Resistance: 5 mΩ
- Insertion Force/Contact: Measured with a steel pin, nominal thickness 15 mm
- Tightening Torque Connector and Nut: 13 Nm
- Protection Class: IP40
- Temperature Range: -40°C to +85°C
- Dimensions: A = 8.2 mm, B = 78 mm, Pole count options from 2 to 8
- Mechanical Data: Contact withdrawal force 2 N, insertion force 5 N, with UL/CSA certifications
Buy the Lumberg KGR60 U–Reliable Circular Connectors for Industrial Applications
Enhance your industrial setups with the Lumberg KGR60 circular connector, featuring a threaded M16 joint and IP40 protection. Designed for PCB back mounting, it offers reliable electrical contact in demanding environments with a temperature range from -40°C to +85°C. Made from durable zinc diecast and copper-zinc components, its mechanical and electrical specifications ensure long-lasting performance. Easy to install with a tightening torque of 13 Nm, this connector is perfect for industrial automation, machinery, and control systems. Order online now for fast delivery and quality assurance!
Order your Lumberg Series KGR60 industrial connector today and ensure dependable, high-performance connections for your projects.
Frequently Asked Questions
Where can I buy LUMBERG KGR60?
You can click on the BUY or RFQ button to purchase KGR60 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part KGR60?
You can download the KGR60 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of KGR60?
LUMBERG
