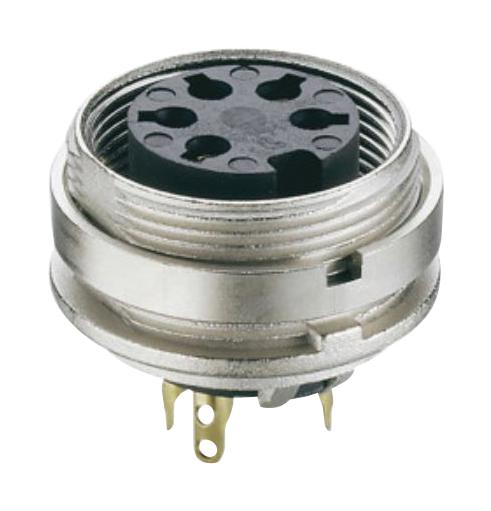

LUMBERG KGV120 circular connector
The KGV120 is a high-quality circular connector designed with a threaded joint according to IEC 61076-2-106. It features solder terminals suitable for back side mounting, IP40 protection class, and is ideal for industrial automation and machinery requiring reliable electrical connections. Constructed with durable materials including zinc diecast housing and copper alloy contacts, it supports maximum rated currents of 3A or 5A, with a temperature range of -40°C to +85°C. Its robust design ensures longevity and stable performance in harsh environments, making it suitable for control panels, automation systems, and industrial equipment.
LUMBERG KGV120 circular connector Specifications:
- Environmental Conditions: Temperature range -40°C to +85°C
- Housing Material: Zinc diecast, pre-copper and nickel-plated
- Contact Material: CuZn, silver-plated and gold flash-plated (3-8 poles); CuZn, pre-nickel and gold-plated (12 poles)
- Insulating Body: PA GF, V-0 according to UL94
- Insertion Force/Contact: 5.0N; Withdrawal Force/Contact: 0.9N
- Tightening Torque Connector: +3Nm; Nut: +3Nm
- Protection Class: IP40
- Connectable Conductors: 0.75 mm² (AWG 20) for 3-8 poles; 0.25 mm² (AWG 24) for 12 poles
- Electrical Data: Contact Resistance: 5mΩ; Rated Current: 3A or 5A; Rated Voltage: 250V or 300V depending on version; Overvoltage Category: Pollution Degree 1 and 2
- Rated Impulse Voltage: 1500V or 500V based on version
- Insulation Resistance: >100 MΩ
Buy the Lumberg KGV120 – Reliable Circular Connector for Industrial Applications
Enhance your industrial projects with the Lumberg KGV120 circular connector, designed for reliable, secure connections in automation, machinery, and control systems. It features a threaded joint based on IEC standards, solder terminals suitable for back side mounting, and an IP40 protection class to withstand harsh environments. Constructed with durable zinc diecast housing and copper alloy contacts, it supports rated currents of 3A or 5A and works efficiently over a wide temperature range from -40°C to +85°C. Its sturdy design ensures longevity, making it the ideal choice for robust control panels, automation systems, and industrial equipment where trusted electrical connections are essential.
Order your Lumberg series KGV120 today and give your industrial connections the dependable quality they deserve.
