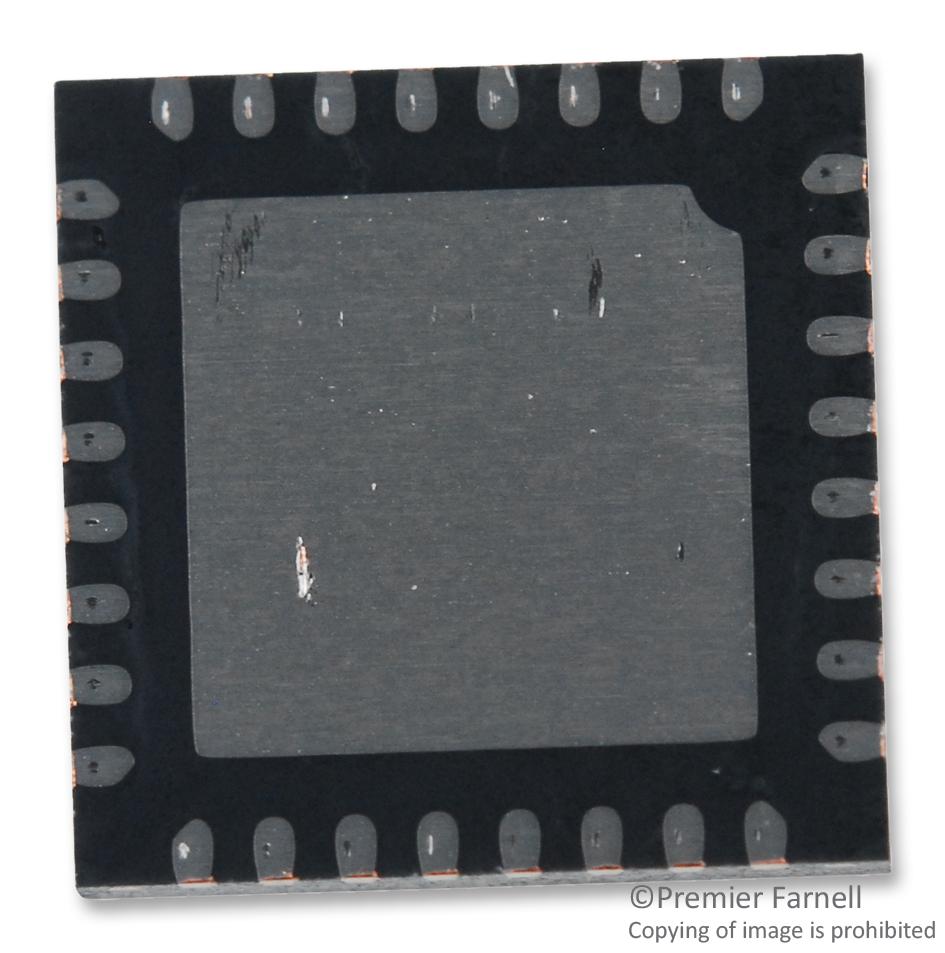

MAXIM INTEGRATED / ANALOG DEVICES MAX11254ATJ Precision ADC
The MAX11254 is a high-resolution, low-power 24-bit delta-sigma ADC with six channels and a maximum sample rate of 64ksps. It features a programmable gain amplifier (PGA) with gains from 1x to 128x, enabling direct interface with high-impedance sources, and supports programmable input ranges for bipolar or unipolar signals. Operating from a single or split supply (2.7V to 3.6V), it offers low noise performance (133dB SNR at 50sps) ideal for industrial, battery-powered, and sensor applications. The device communicates via SPI and includes self-calibration, multi-channel scan modes, and robust power management for versatile system integration. Its compact TQFN package (5mm x 5mm) ensures ease of use in space-constrained applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX11254ATJ Precision ADC Specifications:
- Resolution: 24-bit delta-sigma ADC
- Channels: 6 fully differential inputs
- Sample Rate: Up to 64ksps
- Input Range: Bipolar or unipolar, VREF range
- PGA Gain: 1x to 128x with programmability
- Operation Voltage: 2.7V to 3.6V (single or split supply), 1.8V analog reference
- Power Consumption: Typical 4.2 to 47 mA depending on mode
- Noise Performance: 133dB SNR at 50sps, 124dB at 1kpss
- Interface: SPI compatible, including QSPI and MICROWIRE
- Total package: 5mm x 5mm TQFN
- Operating Temp: -40°C to +125°C
- Features: Self-calibration, digital filtering, multiple scan modes
- Built-in reference and synchronization circuitry
- Robust power-down modes (Standby, Sleep)
Buy the Analog-to-Digital Converter Series 6-Channel 24-Bit: MAX11254
Order the MAX11254 online today to benefit from a compact, high-resolution 24-bit delta-sigma ADC with six channels, programmable gain, and advanced calibration features. Perfect for industrial, sensor, and portable instrumentation projects requiring accurate data acquisition. Leverage fast sampling up to 64ksps, low noise operation, and versatile power management to optimize your system's performance. Seamlessly integrate with standard SPI interfaces, ensuring reliable communication and easy system setup. Get your MAX11254 now and unlock precise measurement solutions for demanding applications.
Buy MAX11254 low-noise ADC now and experience high-precision measurements with efficient power use and flexible system integration.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX11254ATJ?
You can click on the BUY or RFQ button to purchase MAX11254ATJ from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX11254ATJ?
You can download the MAX11254ATJ datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX11254ATJ?
MAXIM INTEGRATED / ANALOG DEVICES
