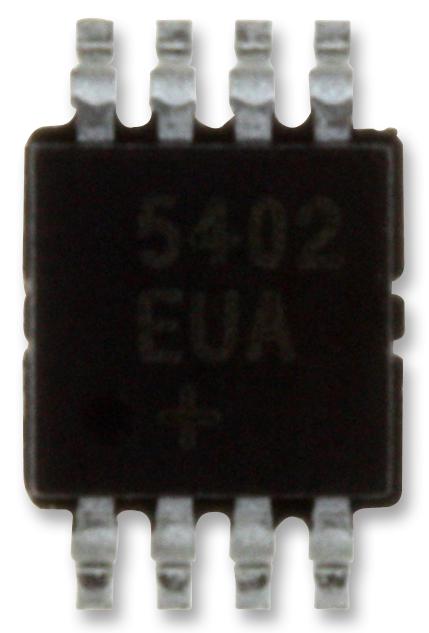

MAXIM INTEGRATED / ANALOG DEVICES MAX2673EUA RF Upconverter Mixer
The MAX2673 is a high-performance, broadband double-balanced upconverter mixer designed for frequency conversion in RF and wireless communication systems. Operating between 400MHz and 2.5GHz, it features low noise figure, high linearity, and excellent isolation. The device uses a differential IF port for enhanced performance in high-frequency applications. It includes an internal LO buffer with a wide LO input power range (-10dBm to +5dBm) and a low-power shutdown mode, making it ideal for portable and hand-held RF devices requiring reliable and efficient frequency upconversion.
MAXIM INTEGRATED / ANALOG DEVICES MAX2673EUA RF Upconverter Mixer Specifications:
- RF Output Frequencies: 400MHz to 2.5GHz
- Noise Figure: 9.3dB at 900MHz
- Supply Voltage Range: +2.7V to +5.5V
- LO Input Power Range: -10dBm to +5dBm
- Operating Temperature Range: -40°C to +85°C
- Package Types: 6-pin SOT23 and 8-pin UMAX
- Maximum Junction Temperature: 150°C
- Shutdown Mode Power Consumption: Less than 1A
- Input Power for IF: 40MHz to 500MHz
- Impedance Matching: External matching network required
- LO and RF Isolation: >30dB at typical conditions
- Conversion Gain: Approx. 7-10dB depending on frequency and model
- Mtching networks: Compact surface-mount design for high-frequency applications
Buy the Buy Maxim Integrated MAX2673EUA Part Number MAX2673EUA Online
Get your Maxim MAX2673EUA broadband RF upconverter mixer today online to ensure seamless frequency upconversion in wireless systems. This device offers low noise figure, broad operating frequency range from 400MHz to 2.5GHz, and high linearity, making it ideal for portable RF communication devices. Its differential IF port and internal LO buffer provide excellent performance in compact, surface-mount packages suitable for high-frequency design. Purchase now for reliable, high-performance frequency conversion solutions designed for modern wireless applications.
Order your Maxim MAX2673EUA broadband upconverter mixer today and elevate your RF projects with efficient frequency conversion and reliable performance.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX2673EUA?
You can click on the BUY or RFQ button to purchase MAX2673EUA from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX2673EUA?
You can download the MAX2673EUA datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX2673EUA?
MAXIM INTEGRATED / ANALOG DEVICES
