MAXIM INTEGRATED / ANALOG DEVICES MAX6922AQHD Vacuum-Fluorescent Display Driver
The MAX6922 is a high-voltage, multi-output vacuum-fluorescent display driver capable of interfacing a VFD tube to microcontrollers. It features 32 push-pull CMOS outputs, a 4-wire serial interface, and support for cascading multiple devices. The driver supports high-current sourcing and sinking, ideal for static or multiplexed VFDs, telecom relays, and industrial displays. It offers adjustable display intensity through PWM via the BLANK input, operates over a wide temperature range, and is available in 44-pin PLCC and TQFN packages, ensuring reliable integration into demanding environments.
MAXIM INTEGRATED / ANALOG DEVICES MAX6922AQHD Vacuum-Fluorescent Display Driver Specifications:
- Displays: Supports static and multiplexed vacuum-fluorescent displays
- Outputs: 32 push-pull CMOS outputs with source 40mA, sink 4mA continually
- Voltage Range: Vdd = 3V to 5.5V, Vpp = 8V to 76V, Vss = -11V to 0V
- Package Options: 44-pin PLCC, 44-pin TQFN
- Serial Interface: 4-wire UART compatible, 5MHz data transfer rate
- Operating Temperature: -40°C to +125°C
- Current Handling: Paralleling outputs for higher current drive, cascade capability
- Input Voltage: Logic signals recognize 0.3V to 0.8×Vcc (low), 0.8×Vcc to Vcc (high)
- Power Dissipation: Depends on load, package, and operating conditions, ensured not to exceed rated limits
- Features include active current sinking, slew-rate control, and PWM intensity control

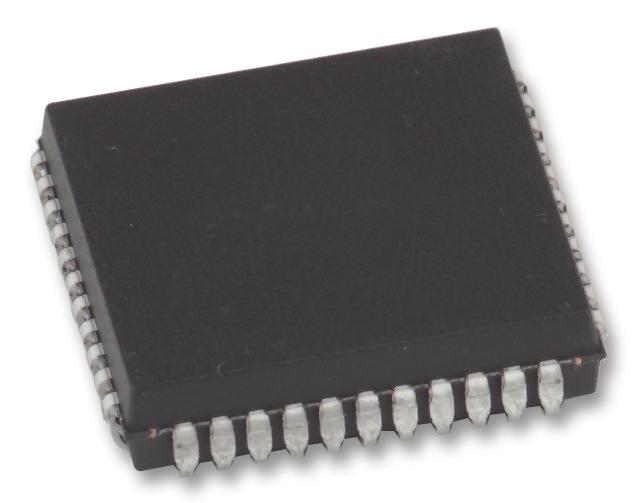

Buy the MAXIM Series MAX6922 VFD Driver: MAX6922
Purchase the MAX6922 VFD driver online now to enhance your display projects with reliable high-current outputs and versatile PWM control. Its broad voltage support, cascade capability, and excellent thermal performance make it ideal for industrial, telecom, and security applications. With compact packages available, the MAX6922 ensures easy integration into your designs. Take advantage of our quick delivery and dedicated customer support to get your project up and running swiftly, ensuring dependable operation over wide temperature ranges and demanding environments.
Order your MAXIM Series MAX6922 VFD driver today and give your displays reliable high-voltage control with easy cascading and PWM brightness features.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX6922AQHD?
You can click on the BUY or RFQ button to purchase MAX6922AQHD from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX6922AQHD?
You can download the MAX6922AQHD datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX6922AQHD?
MAXIM INTEGRATED / ANALOG DEVICES
