MAXIM INTEGRATED / ANALOG DEVICES MAX16060ATE Multivoltage Supervisor IC
The MAX16060/MAX16061/MAX16062 are highly accurate multivoltage supervisory ICs in a compact thin QFN package, designed to monitor multiple system voltages. They provide independent voltage thresholds, manual reset, and watchdog timer functions suitable for complex multivoltage systems in industrial, automotive, storage, and networking applications. Features include 1% accuracy over temperature, open-drain outputs with internal pull-ups, configurable reset timeout, and adjustable input thresholds for flexible voltage monitoring from 0.4V. These devices ensure reliable system operation by asserting reset signals during undervoltage conditions, with minimal external component requirements and operating from -40°C to +125°C.
MAXIM INTEGRATED / ANALOG DEVICES MAX16060ATE Multivoltage Supervisor IC Specifications:
- Package: 16-, 20-, 24-pin thin QFN (4mm x 4mm)
- Temperature Range: -40°C to +125°C
- Supply Voltage Range: 1.0V to 5.5V
- Reset Timeout: Internally set to 140ms, adjustable with external capacitor
- Input Thresholds: Fixed for 3.3V, 2.5V, 1.8V, or adjustable down to 0.4V
- Accuracy: 1% over temperature
- Outputs: Open-drain with 30μA internal pull-ups; up to 5.5V drive capability
- Manual Reset: Input with internal 20kΩ pull-up, debounce circuitry not required
- Watchdog Timer: 1.6s period, can be disabled; asserts reset if timeout exceeded
- Features: Margin enable, threshold tolerance pin (5%/10%), UVLO function, low power consumption
- Connections: Fault monitoring across multiple voltages for automotive, industrial, and communication systems
- Protection: Ensures system reset during undervoltage and power supply fluctuations, reliable at device temperatures and voltages

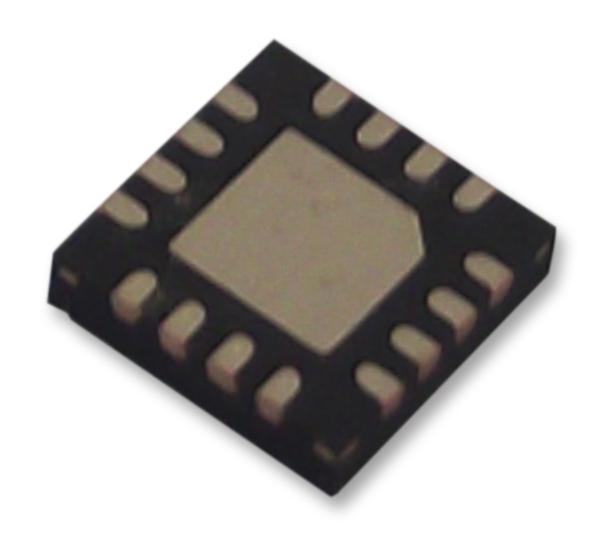

Buy the Buy MAXIM MAX16060 Part Number MAX16060ATE Online
Purchase the MAXIM MAX16060ATE now and ensure your complex multivoltage systems operate reliably. Designed for high precision, the MAX16060 offers 1% accuracy over temperature, independent voltage monitoring, manual reset, and a watchdog timer. Its small 4mm x 4mm QFN package makes it ideal for space-constrained applications in automotive, industrial, storage, and networking equipment. With features like adjustable thresholds, low power consumption, and robust power supply protection, this supervisor IC guarantees consistent system safety and efficiency with minimal external components.
Get MAXIM MAX16060ATE today—built for precision and long-lasting durability in multivoltage system supervision.
