MAXIM INTEGRATED / ANALOG DEVICES MAX16936RATEAV Step-Down Converter
The MAX16936 is a highly efficient, 2.5A current-mode step-down converter with integrated high-side and low-side MOSFETs, designed for automotive and industrial applications. It supports input voltages from 3.5V to 36V, offers fixed outputs of 5V or 3.3V, or an adjustable output range from 1V to 10V. Features include programmable switching frequency from 220kHz to 2.2MHz, spread-spectrum modulation to reduce EMI, and synchronization capability. Its robust protections—thermal shutdown, overvoltage, and cycle-by-cycle current limit—ensure reliable operation over the -40°C to +125°C temperature range. An internal linear regulator powers internal circuitry, with power-good outputs for system sequencing and external synchronization options for cascading multiple devices. Compact packages include 16-pin TSSOP-EP and 16-pin TQFN-EP, making it suitable for space-constrained automotive and industrial power designs.
MAXIM INTEGRATED / ANALOG DEVICES MAX16936RATEAV Step-Down Converter Specifications:
- Input Voltage Range: 3.5V to 36V
- Output Voltage: Fixed 5V or 3.3V, or adjustable 1V to 10V
- Output Current: 2.5A maximum
- Switching Frequency: 220kHz to 2.2MHz, programmable
- Quiescent Current: 28uA at no load
- Protection: Thermal shutdown, overvoltage, cycle-by-cycle current limit
- Temperature Range: -40°C to +125°C
- Packages: 16-pin TSSOP-EP, 16-pin TQFN-EP
- Synchronization: External clock sync & spread spectrum modulation
- Power-Good Monitoring: Yes
- High efficiency with integrated MOSFETs, supports automotive transient conditions
- Built-in linear regulator powering internal circuitry
- Peak duty cycle: 98%
- Transition behavior: Supports high duty cycle operation during undervoltage conditions
- Designed for point-of-load, distributed power, navigation, and radio head units

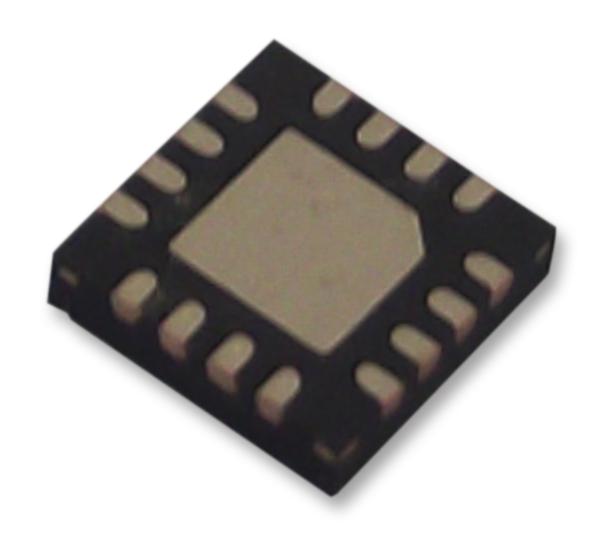

Buy the Buy MAXIM Integrated MAX16936RATEAV Part Number MAX16936RATEAV Online
Order the MAX16936 MAX16936RATEAV online today and enjoy reliable, high-efficiency power conversion for automotive and industrial applications. Featuring wide input voltage support, adjustable output, programmable switching frequency, spread spectrum EMI reduction, and robust protection features, this converter ensures optimal performance in space-constrained designs. Its integrated high-side and low-side MOSFETs minimize external components, simplifying your layout. With a 16-pin compact package and an operating temperature range from -40°C to +125°C, reliability and longevity are guaranteed. Perfect for point-of-load, distributed power, navigation, and radio head units, order now for fast delivery and excellent technical support.
Get MAXIM MAX16936RATEAV today—built for precision, high efficiency, and durable automotive-grade performance.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX16936RATEAV?
You can click on the BUY or RFQ button to purchase MAX16936RATEAV from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX16936RATEAV?
You can download the MAX16936RATEAV datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX16936RATEAV?
MAXIM INTEGRATED / ANALOG DEVICES
