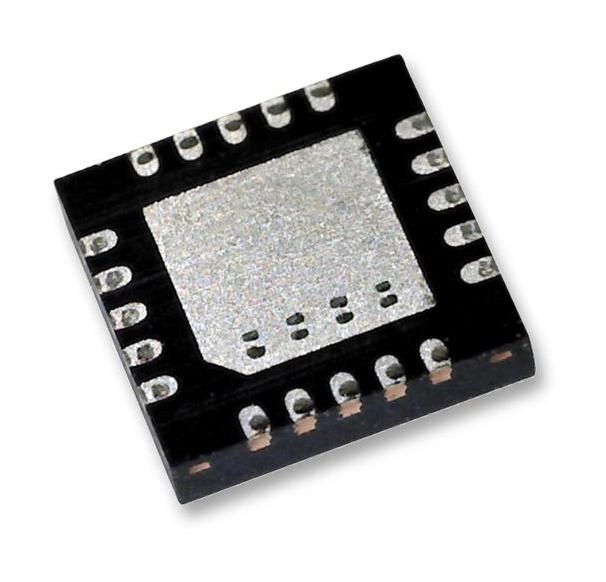

MAXIM INTEGRATED / ANALOG DEVICES MAX17634AATP High-Efficiency Power Converter
The MAX17634x series features high-efficiency, high-voltage synchronous step-down DC-DC converters operating from 4.5V to 36V input, delivering up to 4.25A. Variants include fixed 3.3V, fixed 5V, and an adjustable output option from 0.9V up to 90% of Vin. Built-in compensation and peak-current-mode control architecture allow for operation in PWM, PFM, or DCM modes, enabling high efficiency under diverse load and light-load conditions. Compact 20-pin (4mm x 4mm) TQFN package with excellent thermal performance and overcurrent protection makes it ideal for industrial control, power supplies, and distributed regulation systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX17634AATP High-Efficiency Power Converter Specifications:
- Input Voltage Range: 4.5V to 36V
- Maximum Output Current: 4.25A
- Output Voltage: Fixed 3.3V or 5V, Adjustable from 0.9V to 90% of Vin
- Switching Frequency: 400kHz to 2.2MHz (adjustable via RT resistor)
- Peak Efficiency: 94%
- Control Modes: PWM, PFM, DCM
- Thermal Resistance (Junction to Ambient): 26°C/W
- Package: 20-pin (4mm x 4mm) TQFN with exposed pad
- Built-in Compensation, Overtemperature, and Overcurrent Protection
- Operating Temperature Range: -40°C to +125°C
- Suitable for industrial power supplies, point-of-load regulation, and high-voltage systems
Buy the Maxim Integrated MAX17634A – Reliable Step-Down Power Converter for Industrial Applications
Enhance your power management with the Maxim Integrated MAX17634A series step-down DC-DC converter. Designed for input voltages from 4.5V to 36V, it delivers up to 4.25A of output current. Its high efficiency of 94% and multiple control modes, including PWM, PFM, and DCM, optimize performance across various load conditions. Its compact 20-pin TQFN package ensures easy integration into industrial systems, and built-in protections improve reliability. Order now online to upgrade your power solutions with a proven, robust converter.
Order your Maxim Integrated MAX17634A step-down converter today and power your industrial projects with dependable, high-efficiency voltage regulation.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX17634AATP?
You can click on the BUY or RFQ button to purchase MAX17634AATP from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX17634AATP?
You can download the MAX17634AATP datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX17634AATP?
MAXIM INTEGRATED / ANALOG DEVICES
