MAXIM INTEGRATED / ANALOG DEVICES MAX4734EUB Analog Multiplexer

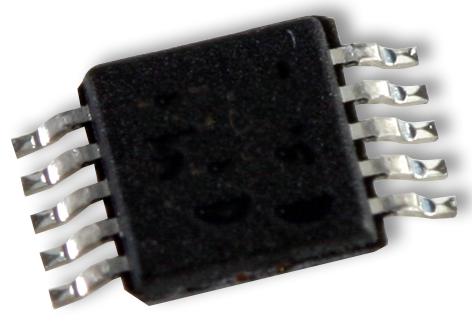

The MAX4734EUB+ is a low-voltage, four-channel CMOS analog multiplexer housed in a 10-pinµMAX package. It operates from 1.6V to 3.6V with low on-resistance of up to 0.8Ω, enabling high-speed switching with turn-on times of 25ns and turn-off times of 20ns. The device handles rail-to-rail signals, consumes less than 4µW, and features break-before-make switching and high current capacity of 150mA. Its CMOS inputs are compatible at 1.8V, making it ideal for power routing, portable systems, and signal switching applications requiring low leakage, minimal crosstalk, and excellent flatness.
MAXIM INTEGRATED / ANALOG DEVICES MAX4734EUB Analog Multiplexer Specifications:
- Supply Voltage Range: 1.6V to 3.6V
- On-Resistance: Max 0.8Ω at 3V
- Switching Times: Turn-on 25ns, Turn-off 20ns
- Break-Before-Make Time: 5ns at 25°C
- Maximum Continuous Current: 150mA
- Off-Leakage Current: ±0.002nA at 25°C
- Crosstalk and Off-Isolation: -56dB at 1MHz
- Analog Signal Range: 0 to V+
- CMOS Logic Compatibility: 1.8V and 3V supply
- Package: 10-pin µMAX (3mm x 3mm)
Buy the Maxim MAX4734 U+2013 Reliable Analog Multiplexer for Industrial Applications
Upgrade your signal switching system with the Maxim MAX4734 analog multiplexer. Designed for low-voltage, portable electronics, it offers fast switching times, low on-resistance, and minimal leakage currents. Its rail-to-rail handling and high current capacity make it suitable for power routing, battery-powered systems, and high-fidelity signal processing. With a compact 10-pin µMAX package, this device ensures reliable performance in compact spaces. Purchase online today to improve your electronic system's efficiency, signal fidelity, and power management with this versatile multiplexer.
Buy Maxim MAX4734 now and experience unmatched reliability and high-speed switching in your signal routing or portable device applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX4734EUB?
You can click on the BUY or RFQ button to purchase MAX4734EUB from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX4734EUB?
You can download the MAX4734EUB datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX4734EUB?
MAXIM INTEGRATED / ANALOG DEVICES
