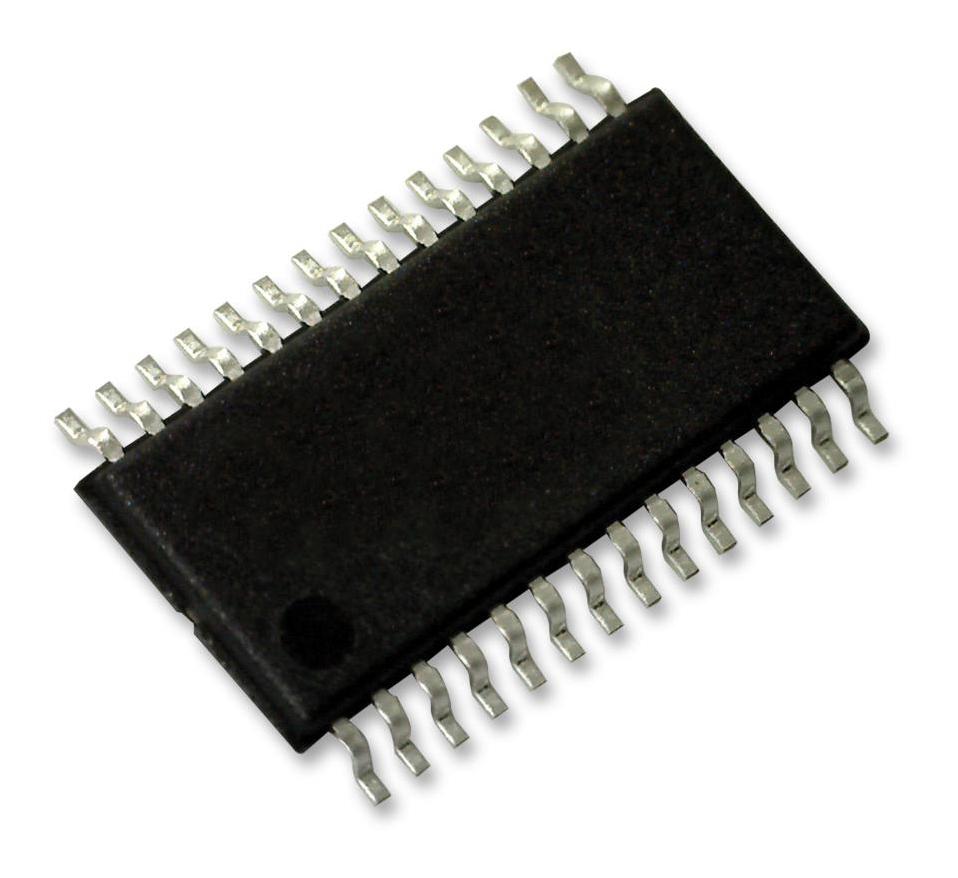

MAXIM INTEGRATED / ANALOG DEVICES MAX25601BAUIV High-Current LED Controller
The MAX25601B is a high-performance synchronous boost and buck LED controller designed for automotive, industrial, and architectural lighting. It operates over a wide input voltage range of 4.5V to 48V, making it suitable for automotive applications and LED driver circuits. Features include programmable switching frequency up to 2.2MHz, internal spread spectrum for EMI reduction, high-current gate drivers, and comprehensive fault protection such as overvoltage, undervoltage, thermal shutdown, and hiccup mode. It supports both analog and PWM dimming, including fast shunt dimming, and has a compact TSSOP package for space-efficient designs, ensuring high efficiency and reliable LED power management.
MAXIM INTEGRATED / ANALOG DEVICES MAX25601BAUIV High-Current LED Controller Specifications:
- Input Voltage Range: 4.5V to 48V
- Switching Frequency: Programmable up to 2.2MHz
- Peak Gate Driver Current: 1A (high-side), 2.4A (low-side)
- Thermal Shutdown: 165°C (hysteresis 15°C)
- Fault Indicators: Active-low FLT pin for OV, UV, open/load faults
- Protection Features: Overvoltage, undervoltage, thermal shutdown, hiccup mode
- Dimming: Analog (REFI) and PWM (PWMDIM, SHUNT_CTRL)
- Package Options: 28-pin TSSOP and 32-pin SWTQFN
- Operating Temperature: -40°C to +125°C (automotive grade)
- External MOSFETs: logic-level type, voltage >20% of max output
- Physical Package: Compact, surface-mount
Buy the MAXIM Integrated MAX25601B – Reliable LED Controller for Industrial Applications
Get the MAX25601B LED controller online today and benefit from its wide input voltage range, high switching frequency, efficient and reliable LED driving, and comprehensive fault protection. Ideal for automotive, industrial, and architectural lighting, this compact and robust controller supports both analog and PWM dimming, includes spread spectrum EMI reduction, and offers multiple package options for space-critical applications. Improve your lighting system’s efficiency and longevity by purchasing this proven solution online now.
Order your MAXIM Integrated MAX25601B series LED controller today and enhance your automotive and industrial lighting projects with dependable performance.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX25601BAUIV?
You can click on the BUY or RFQ button to purchase MAX25601BAUIV from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX25601BAUIV?
You can download the MAX25601BAUIV datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX25601BAUIV?
MAXIM INTEGRATED / ANALOG DEVICES
