MAXIM INTEGRATED / ANALOG DEVICES MAX396CWI Analog Multiplexer
The MAX396/MAX397 are low-voltage CMOS analog multiplexers designed for precision signal routing in applications like data acquisition, communication systems, and industrial control. The MAX396 offers 16 channels, while the MAX397 provides dual 8-channel configurations. Features include low on-resistance (1000Ω max), matched resistances within 6Ω, low leakage currents below 1nA at +85°C, and fast transition times under 250ns. Operable with single +2.7V to +16V or dual +2.7V to +8V supplies, they are compatible with CMOS logic. Robust ESD protection (>2000V), low charge injection (5pC max), and ultra-low power consumption make these muxes ideal for battery-powered and sensitive analog systems, ensuring high accuracy and durability.
MAXIM INTEGRATED / ANALOG DEVICES MAX396CWI Analog Multiplexer Specifications:
- On-Resistance: 1000Ω max
- On-Resistance Match: 6Ω max between channels
- Charge Injection: 5pC max
- Leakage Current (Input Off): <1nA at +85°C
- Leakage Current (Output Off): <2.5nA at +85°C
- Supply Voltage: +2.7V to +16V (single), +2.7V to +8V (dual)
- Switching Speed: Transition time less than 250ns
- ESD Protection: >2000V
- Operating Temperature Range: 0°C to +70°C / -40°C to +85°C / -55°C to +125°C (model-dependent)
- Power Consumption: Less than 10μW
- Channel Configuration: MAX396 16 channels, MAX397 Dual 8 channels
- Pin Compatibility: with industry standards like MAX306, DG406, DG506A
- Device Fabrication: Low-voltage silicon-gate process

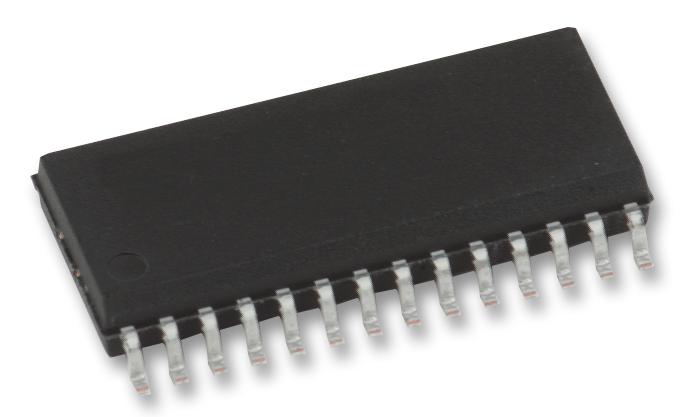

Buy the Maxim Series MAX396: Precision 16-Channel CMOS Analog Multiplexer: MAX396CWI
Purchase the Maxim MAX396CWI online today—engineered for high accuracy and reliability in low-voltage analog signal routing. This 16-channel CMOS multiplexer features low on-resistance, matched channels, and fast switching speeds, making it ideal for data acquisition, industrial control, and communications. Its ultra-low leakage currents and robust ESD protection ensure long-term durability and stable performance. Easy to implement with industry-standard pin compatibility, the MAX396CWI is perfect for designing sensitive and critical analog systems. Order now to enhance your precision signal switching capabilities with this versatile multiplexer.
Get Maxim MAX396CWI today—built for precision, low-voltage operation, and long-lasting durability in signal switching applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX396CWI?
You can click on the BUY or RFQ button to purchase MAX396CWI from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX396CWI?
You can download the MAX396CWI datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX396CWI?
MAXIM INTEGRATED / ANALOG DEVICES
