MAXIM INTEGRATED / ANALOG DEVICES MAX5064AATC Half-Bridge MOSFET Driver
The MAX5064AATC high-speed, half-bridge MOSFET driver operates from 8V to 12.6V, delivering up to 125V and 2A peak current. Encased in a 12-pin TQFN package, it features matched propagation delays of 35ns within 3ns, ideal for high-frequency telecom converters, active-clamp, and full-bridge applications. The device includes an on-chip bootstrap diode, CMOS logic inputs, and programmable break-before-make timing from 16ns to 95ns, supporting switching frequencies up to 1MHz. It ensures rapid turn-off during faults, with low input capacitance, operating reliably over -40°C to 125°C for power management and motor drives.
MAXIM INTEGRATED / ANALOG DEVICES MAX5064AATC Half-Bridge MOSFET Driver Specifications:
- Operating Voltage Range: 8V to 12.6V
- Maximum Voltage: 125V
- Peak Source/Sink Current: 2A
- Propagation Delay: 35ns (typical) with 3ns matching
- Break-Before-Make Timing: Programmable 16ns to 95ns
- Switching Frequency: Up to 1MHz with 100nC load
- Logic Input Types: CMOS (Vpp/2) with hysteresis
- Operating Temperature Range: -40°C to 125°C
- Power Dissipation: Up to 1.95W in TQFN package

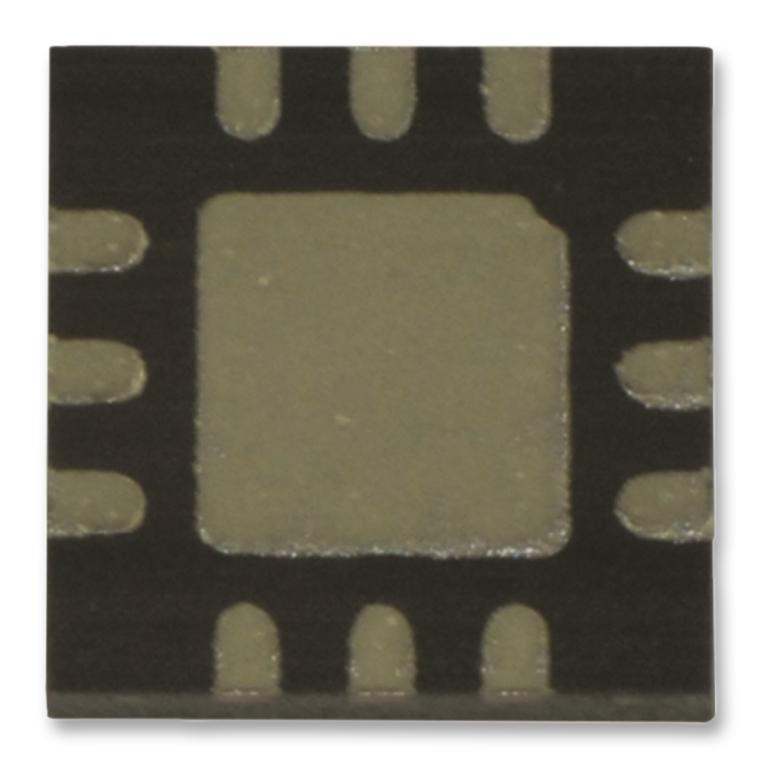

- Package: 12-pin Thin QFN, 4mm x 4mm, with exposed pad
- On-chip Bootstrap Diode: Forward Voltage Drop approximately 0.9V
- Input Capacitance: 25pF
- Control Features: Fault protection, fast turn-off
- Application Support: Power supplies, motor drives, telecom power converters
Buy the Maxim Series 125V High-Speed Half-Bridge MOSFET Driver: MAX5064AATC
Purchase the Maxim Series MAX5064AATC high-speed half-bridge MOSFET driver online today to ensure high-voltage switching efficiency, matched propagation delays, and robust performance for telecom, motor control, and high-frequency power applications. With support for up to 125V and 2A peak current, adjustable dead time, and an internal bootstrap diode, this driver optimizes power management systems. Its compact 12-pin TQFN package and operation from 8V to 12.6V make it ideal for high-power, high-frequency circuits, ensuring fast, reliable switching and fault protection for demanding industrial applications.
Order your Maxim Series MAX5064AATC high-speed half-bridge MOSFET driver today and enhance your power conversion designs with reliable, fast switching performance.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX5064AATC?
You can click on the BUY or RFQ button to purchase MAX5064AATC from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX5064AATC?
You can download the MAX5064AATC datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX5064AATC?
MAXIM INTEGRATED / ANALOG DEVICES
