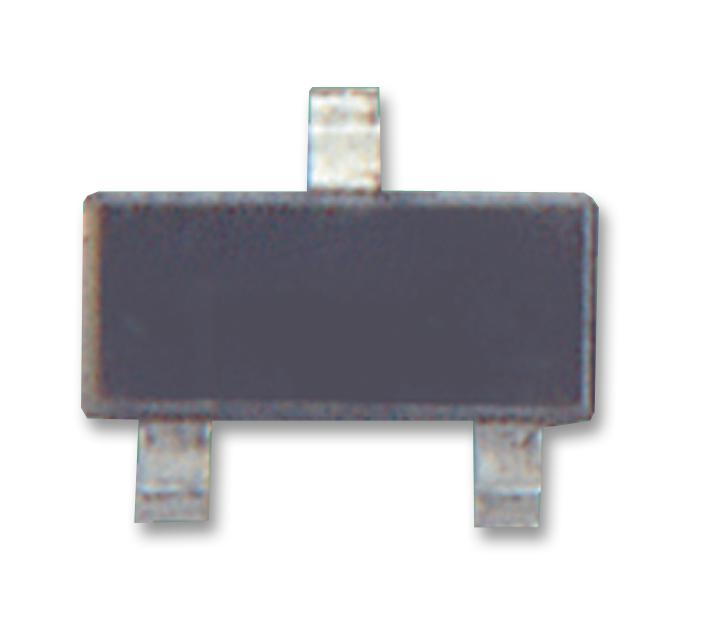

MAXIM INTEGRATED / ANALOG DEVICES MAX6101EURT Voltage Reference
The MAX6101EUR+T is a low-cost, low-dropout, micropower voltage reference in a 3-pin SOT-23 package. It features a curvature correction circuit and laser-trimmed thin film resistors, resulting in a temperature coefficient of ±75ppm/°C and an initial accuracy of 0.4%. This series mode voltage reference draws only 90µA of supply current and can source up to 5mA while sinking 2mA of load current. It maintains a supply current that is virtually independent of supply voltage, with only a 4µA/V variation, and does not require an external resistor. The device is internally compensated, stable with load capacitance, and does not need an external compensation capacitor—saving space in compact designs. Its low dropout voltage, independent supply operation, and ultra-low supply current make it ideal for battery-powered and high-performance low-voltage systems. This device provides an output voltage of 1.25V, supports a supply voltage range of 2.5V to 12.6V, and operates within a temperature range of -40°C to 85°C. It is stable with capacitive loads and offers a maximum load regulation of 0.9mV/mA at 5mA source current and 3mV/mA at 2mA sink current. The noise voltage is 13µVP-P over the 0.1Hz to 10Hz frequency range. It is suitable for applications in power management, especially in cell phones, hard disk drives, notebook computers, PDAs, GPS devices, DMMs, and portable battery-powered systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX6101EURT Voltage Reference Specifications:
- Output Voltage: 1.25V
- Supply Voltage Range: 2.5V to 12.6V
- Temperature Range: -40°C to +85°C
- Temperature Coefficient: ±75ppm/°C
- Initial Accuracy: 0.4%
- Supply Current: 90µA
- Source/Sink Current: 5mA / 2mA
- Load Regulation: 0.9mV/mA (source), 3mV/mA (sink)
- Output Noise Voltage: 13µVP-P (0.1Hz to 10Hz)
- Stable with load capacitance
- No external resistor or compensation capacitor required
- Dropout Voltage: 50mV at 1mA load
- Package: 3-pin SOT-23
- Operating Temperature: -40°C to 85°C
- short-circuit protection: Continuous
- Reverse voltage tolerance: IN to ground -0.3V to 13.5V
