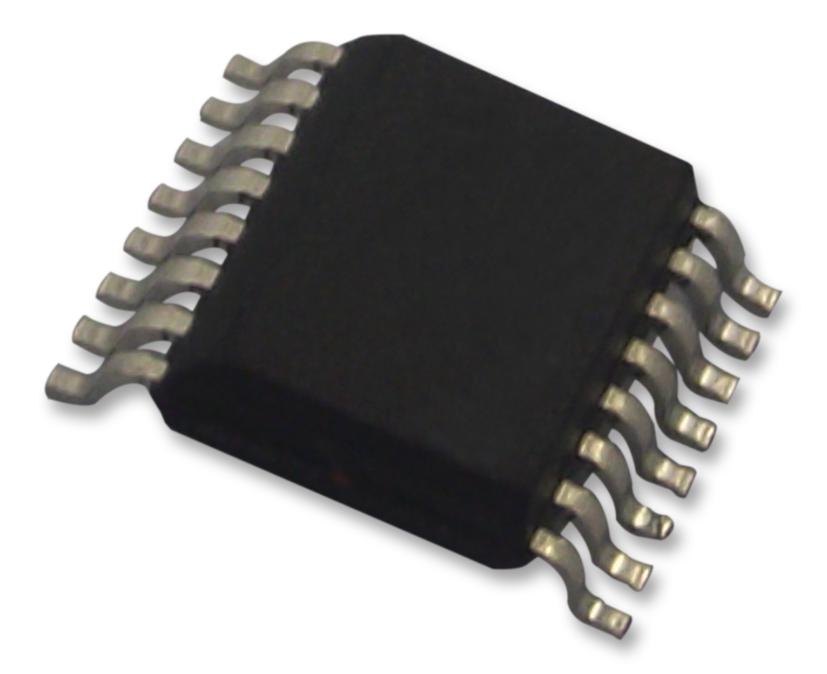

MAXIM INTEGRATED / ANALOG DEVICES MAX6970AAE LED Driver
The MAX6970AAE+ is a compact 8-port LED driver in a 16-pin SSOP package, capable of operating up to 36V. It features eight open-drain, constant-current sinking outputs rated at 55mA, with current programmable via a single external resistor. Using an industry-standard 4-wire serial interface with shift register and latch architecture, it allows cascading for comprehensive LED display control. Ideal for message signs, marquees, traffic signs, gaming, and architectural lighting, it operates over 3V to 5.5V and a -40°C to 125°C temperature range, with current matching within 3%, and across ICs within 6%.
MAXIM INTEGRATED / ANALOG DEVICES MAX6970AAE LED Driver Specifications:
- Supply Voltage Range: 3V to 5.5V
- Number of Outputs: 8 open-drain, sinking
- Maximum Output Voltage: 36V
- Output Current: Up to 55mA per port
- Current Matching: Within 3%
- Overall Current Matching Across ICs: 6%
- Package Type: 16-pin SSOP
- Operating Temperature Range: -40°C to +125°C
- Current Programming Resistor: Single external resistor, minimum 327.3Ω
- Serial Interface: 4-wire, shift register plus latch
- Input Voltage: Logic 3V to 5.5V
- Operating Power Dissipation: 1702mW in 16-pin package at TA=+70°C
- Internal Temperature Cutoff: ~165°C (overtemperature protection)
