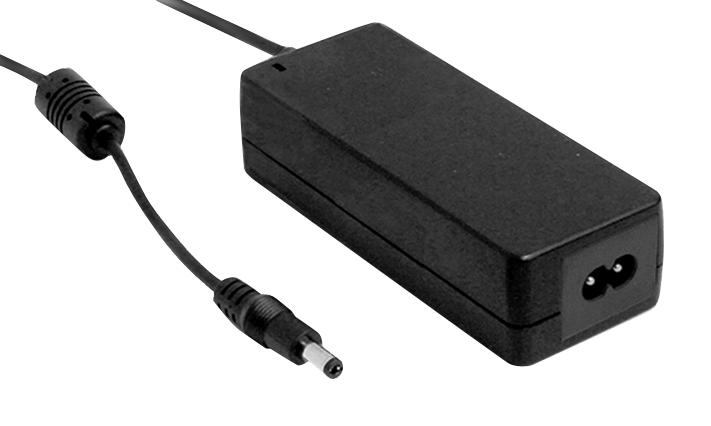

MEAN WELL GSM60B15P1J Medical Power Adapter
GSM60B series is a high-reliability, medical-grade 60W AC-DC power adaptor designed for medical electrical devices. It features universal AC input (80VAC to 264VAC), multiple output voltages from 5V to 48V, high efficiency up to 91.5%, ultra-low leakage current (<50uA), and complies with international medical safety standards (2*MOPP). This fanless adaptor boasts a reinforced plastic case, low no-load power consumption (<0.1W), and various protections including overvoltage, overload, and temperature. Its design ensures safe operation directly contact with patients, making it ideal for medical equipment like monitors, hemodialysis machines, and portable devices.
MEAN WELL GSM60B15P1J Medical Power Adapter Specifications:
- Input Voltage: 80~264VAC, 47~63Hz
- Output Power: 60W
- Output Voltages: 5V, 7V, 9V, 12V, 15V, 18V, 24V, 48V
- Rated Current: 6A for 5V, 6A for 7V, 6A for 9V, 5A for 12V, 4A for 15V, 1.25A for 18V, 2.5A for 24V, 1.25A for 48V
- Ripple & Noise: Max 240mVp-p depending on model
- Efficiency: Up to 91.5%
- Leakage Current: <50μA
- Power Factor: Built-in active PFC
- Protection: Short circuit, Overload, Over voltage, Over temperature
- Working Temperature: -30°C to +60°C (derating included)
- Storage Temperature: -40°C to +85°C
- Dimensions: 125*50*31.5mm
- Safety: IEC320-C8 inlet, UL, TUV, EN60601-1 certified
- Enclosure: Fully enclosed plastic case
- Certifications: UL, CE, TUV, EN60601-1
Buy the Mean Well Series GSM Series Medical Power Adapter: GSM60B15P1J
Discover the reliable and efficient GSM Series 60W medical power adapter designed for diverse medical applications. Featuring universal input, multiple output options, high efficiency up to 91.5%, and ultra-low leakage current, this adaptor ensures safe operation directly contact with patients. Its compact design, low no-load power consumption below 0.1W, and international safety certifications make it perfect for monitors, dialysis machines, and portable devices. Purchase online today to ensure your medical equipment operates reliably with certified safety and energy efficiency.
Order your Mean Well Series GSM60B15P1J today and give your medical devices the dependable power they need for safe and reliable operation.
Frequently Asked Questions
Where can I buy MEAN WELL GSM60B15P1J?
You can click on the BUY or RFQ button to purchase GSM60B15P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM60B15P1J?
You can download the GSM60B15P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM60B15P1J?
MEAN WELL
