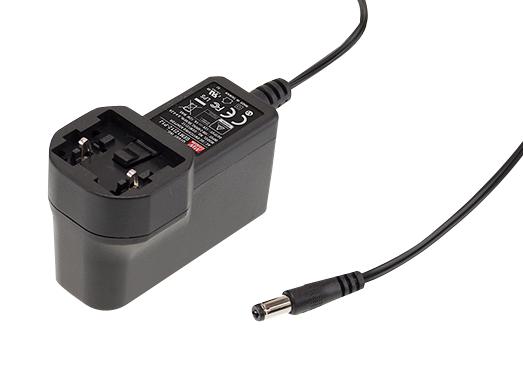

MEAN WELL GEM06I09P1J Medical Power Adapter
The GEMO6I09P1J is a highly reliable, 6W wall-mounted medical power adapter designed for portable medical devices such as blood glucose meters, blood pressure monitors, and sleep apnea equipment. It complies with international medical safety standards including ANSI/AAMI ES60601-1 and EN60601-1/11, featuring ultra-low leakage currents (<55μA) and energy efficiency at Level V. The compact, fully enclosed plastic case supports interchangeable AC plugs for global use, with protections against short circuit, overload, and overvoltage. It offers a wide input range (80-264VAC), a 5V output, high efficiency up to 80%, and a 3-year warranty, making it ideal for medical applications requiring safety and portability.
MEAN WELL GEM06I09P1J Medical Power Adapter Specifications:
- Input Voltage Range: 80-264VAC, 113-370VDC
- Output Voltage: 5V
- Rated Power: 6W
- Leakage Current: <55μA
- Efficiency: Up to 80%
- Protection: Short circuit, Overload, Overvoltage
- Working Temperature: -20°C to +70°C
- Storage Temperature: -20°C to +85°C
- Humidiry: 20% to 90% RH non-condensing
- Dimensions: 73.9mm x 39mm x 48.5mm
- Isolation Level: 2 x MOPP, Up to 5656VDC withstand voltage
- Certifications: EN60601-1, ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No 60601-1, EAC
- Enclosure: Fully enclosed plastic case
- Warranty: 3 years
Buy the Mean Well GEMO6I09P1J – Reliable Medical Power Adapter for Industrial Applications
Get your reliable GEMO6I09P1J medical power adapter online now. Designed for portable health devices, it features ultra-low leakage current, wide input voltage, and multiple international plug options. With a compact, fully enclosed plastic case and certifications for medical safety standards, this 6W adapter ensures safe, efficient power supply for critical healthcare equipment around the globe. Enjoy rapid online ordering and deliver high-quality power solutions for your medical projects effortlessly.
Order your Mean Well Series GEMO6I09P1J today and ensure your medical devices operate safely with dependable power conversion and international plug options.
Frequently Asked Questions
Where can I buy MEAN WELL GEM06I09P1J?
You can click on the BUY or RFQ button to purchase GEM06I09P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GEM06I09P1J?
You can download the GEM06I09P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GEM06I09P1J?
MEAN WELL
