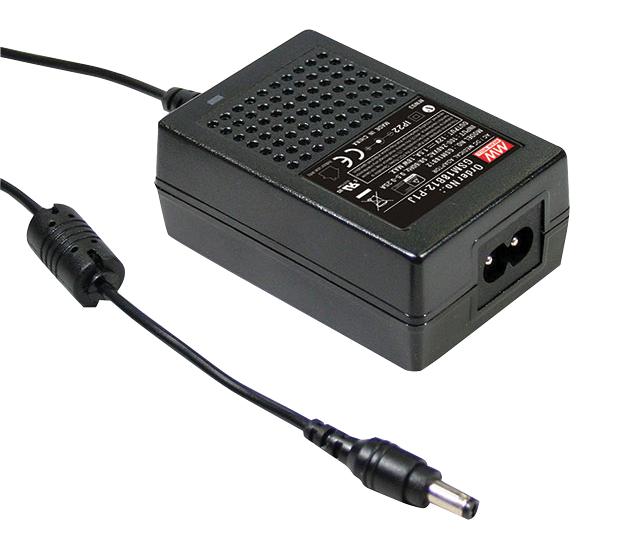

MEAN WELL GSM18B24P1J Medical Power Adapter
The GSM18B series is a high-reliability, medical-grade AC-DC power adapter offering 18W power output, designed for portable and bedside medical devices. It features universal input voltage from 80VAC to 264VAC, with multiple output voltages between 5VDC and 48VDC to suit various equipment needs. Fully compliant with international medical safety standards, including 2 x MOPP isolation, and equipped with low leakage current below 50uA, it ensures patient safety during direct electrical contact. High efficiency up to 88%, low no-load power consumption under 0.1W, and robust protection functions make it ideal for medical applications requiring dependability and energy savings.
MEAN WELL GSM18B24P1J Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC
- Output Power: 18W
- Output Voltages: 5V, 7.5V, 9V, 12V, 15V, 18V, 24V, 48V
- Rated Current: 3A (5V), 2A (7.5V, 9V, 12V), 1A (15V), 0.75A (18V), 0.375A (24V), 0.2A (48V)
- Ripple & Noise (max): 60mVp-p to 240mVp-p depending on model
- Voltage Tolerance: ±3% to ±5%
- Efficiency: Up to 88%
- Leakage Current: <50uA
- Protections: Short circuit, Overload, Over voltage
- Working Temp.: -25°C to +60°C
- Dimensions: 79mm x 54mm x 33mm
- Certifications: UL 60601-1, EN60601-1, IEC 60601-1, TUV, CB, CE
- Enclosure: Fully enclosed plastic case
- Operating Humidity: 20% to 90% RH
- Storage Temp.: -40°C to +85°C
- MTBF: 796,700 hours
- Emergency protection compliance and international safety standards met.
Buy the Buy Mean Well 18WAC-DC Power Adapter Part Number GSM18B24P1J Online
Purchase the high-reliability medical power adapter series for portable and bedside medical devices. Featuring universal input voltage from 80VAC to 264VAC, multiple output voltages, and certified safety standards, it guarantees patient safety with low leakage current below 50uA. With an efficiency of up to 88% and low no-load power consumption under 0.1W, it saves energy and reduces operational costs. Its compact, fully enclosed plastic case ensures durability. Suitable for various medical applications, order online today for fast delivery of this certified, dependable power solution.
Order your Mean Well SeriesGSM18B24P1J today and ensure dependable, high-efficiency power for your portable medical devices. Perfect for bedside, infusion, and diagnostic equipment, this certified medical power adaptor combines safety, low leakage current, and robust protections. Its universal input and multiple output options make it adaptable to various device requirements, while its environmentally conscious design minimizes power consumption during standby. Trust in this reliable, energy-efficient power supply to keep your medical systems functioning safely and continuously—order now for fast, secure online delivery.
Frequently Asked Questions
Where can I buy MEAN WELL GSM18B24P1J?
You can click on the BUY or RFQ button to purchase GSM18B24P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM18B24P1J?
You can download the GSM18B24P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM18B24P1J?
MEAN WELL
