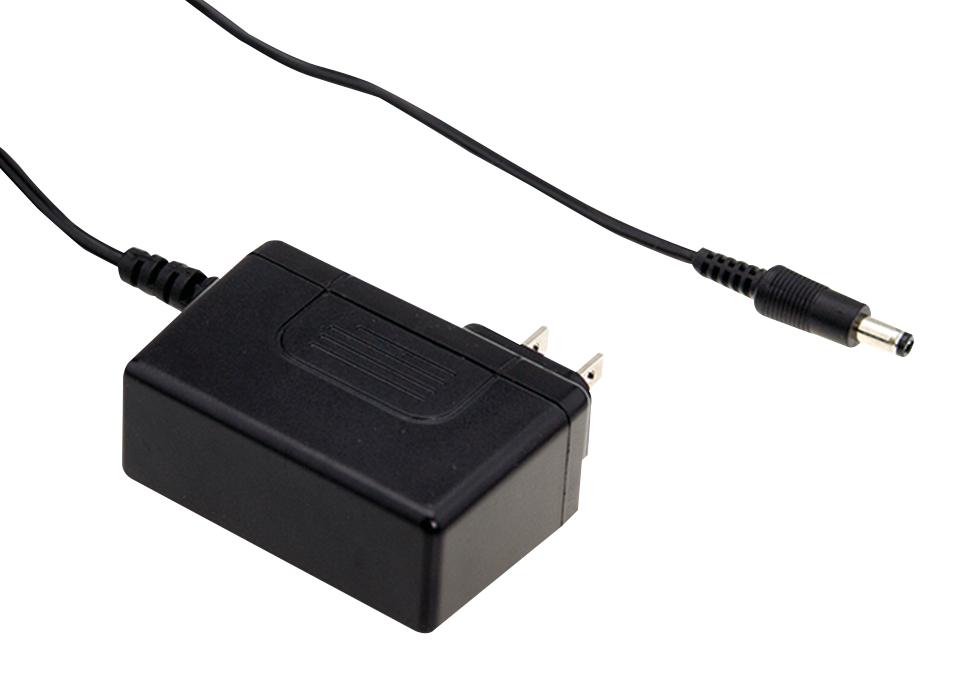

MEAN WELL GSM60U48P1J medical power adaptor
GSM60U series is a 60W ultra slim, wall-mounted medical power adaptor designed for reliable operation with medical safety standards (2 x MOPP). It features high efficiency up to 90%, extremely low no-load power consumption below 0.15W, and wide input voltage range from 80VAC to 264VAC. Suitable for various medical devices including blood glucose meters, blood pressure monitors, nebulizers, and portable medical equipment, it complies with international safety standards, adopts a flame-retardant plastic case, and offers protections against short circuit, overload, and over voltage. Its compact design and energy-saving features make it ideal for medical applications requiring safety, efficiency, and reliability.
MEAN WELL GSM60U48P1J medical power adaptor Specifications:
- Output Power: 60W
- Input Voltage Range: 80VAC to 264VAC
- Output Voltage Options: 5V, 7.5V, 12V, 18V, 24V, 48V
- Rated Current: 6A, 6A, 5.5A, 4.5A, 3.338A, 2.54A, 1.25A
- Ripple & Noise Max.: 100mVp-p for 5V-12V, 120mVp-p for 18V-24V, 150mVp-p for 48V
- Voltage Tolerance: ±5.0% (5V-12V), ±3.0% (24V, 48V)
- Line Regulation: ±1.0% to ±5.0% depending on model
- Load Regulation: ±5.0% to ±2.0% depending on model
- Efficiency: Up to 90%
- No Load Power Consumption: <0.15W
- Operating Temperature: -30°C to +70°C
- Storage Temperature: -30°C to +85°C
- Protections: Short circuit, Overload (Hiccup mode), Over voltage (clamp by zener diode)
- Safety Standards: ANSI/AAMI ES60601-1/ES60601-1-11, UL2468, CSA
- Isolation Level: 2x MOPP
- Dimensions: 75.5mm x 32mm x 47.5mm (L x W x H)
- Vibration: 10-500Hz, 2G, 60 min per axis
- MTBF: 400,000 hours
- EMC Compliance: FCC Part 18 Class B (Emission)
Buy the Mean Well GSM60U3– Reliable Medical Power Adapter for Medical Devices
Experience reliable, efficient, and safe power delivery with the Mean Well GSM60U series medical adaptors. Designed for medical devices like blood glucose meters, blood pressure monitors, and nebulizers, these highly efficient adapters meet international safety standards and feature low leakage currents. Their ultra-slim design makes them perfect for space-constrained environments, while protections against short circuits, overloads, and overvoltage ensure user safety. Purchase online now to equip your medical equipment with dependable power solutions that guarantee performance and safety.
Order your Mean Well Series GSM60U48P1J today and ensure your medical equipment operates with dependable power and strict safety standards.
Frequently Asked Questions
Where can I buy MEAN WELL GSM60U48P1J?
You can click on the BUY or RFQ button to purchase GSM60U48P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM60U48P1J?
You can download the GSM60U48P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM60U48P1J?
MEAN WELL
