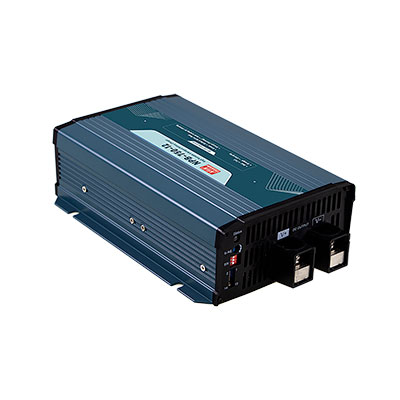

MEAN WELL NPB75012 Ultra Wide Output Battery Charger
The MEAN WELL NPB-750 series is a compact and versatile intelligent battery charger designed for a wide range of applications. It features a fully digital control design with automatic battery voltage detection, offering an ultra-wide voltage range and programmable charging curves via the optional SBP-001 programmer. Safety features include short circuit, over voltage, over temperature, battery reverse polarity protection, and compliance with industry standards. This charger is suitable for lead-acid (Pb) and Li-ion batteries, making it ideal for applications such as electric vehicles, camping cars, buses, robotic lawn mowers, and telecommunication base stations.
MEAN WELL NPB75012 Ultra Wide Output Battery Charger Specifications:
- Rated Power: 759.4W
- Output Voltage Range: 90 ~ 264VAC, 127 ~ 370VDC
- Frequency Range: 47 ~ 63Hz
- Power Factor: >0.95 (at 230VAC)
- Input AC Current: 8.7A/115VAC, 4A/230VAC
- Max. Output Current (CC): 43A
- Float Charge Voltage (Vfloat): 13.8V
- Recommended Battery Capacity: 40 ~ 130AH
- Charge Voltage Range: 42 ~ 80V
- Efficiency: 92%
- Leakage Current: <1mA/240VAC
- Reverse Polarity Protection: Protected internal reverse detection
- Over Voltage Protection: Shut down O/P voltage, recovers automatically
- Over Temperature Protection: Shut down and latch off o/p voltage
- Safety Standards: UL62368-1, BS EN/EN62368-1, IEC62368-1, BS EN/EN60335-1/2-29, IEC60335-1/2-29
- Withstand Voltage: 3KVAC (I/P-O/P), 2KVAC (I/P-FG), 0.5KVAC (O/P-FG)
- Isolation Resistance: 100M Ohms / 500VDC
- Working Temperature: 20 ~ 95% RH non-condensing
- Storage Temperature & Humidity: -40 ~ +85℃, 10 ~ 95% RH non-condensing
- Temperature Coefficient: ±0.05%/℃(0 ~ 50℃)
- Vibration Resistance: 10 ~ 500Hz, 2G
- Dimension: 230*158*67mm
- Weight: 1.84Kg
- Packing: 4pcs/ 9Kg / 1.63CUFT
- EMC Immunity: Complies with BS EN/EN55032 (CISPR32), BS EN/EN55014-1
- EMC Emission: Complies with BS EN/EN55032 (CISPR32), BS EN/EN55014-1
Buy the NPB-750-12 MEAN WELL Ultra Wide Output Battery Charger | myMectronic
Purchase the MEAN WELL NPB-750-12 battery charger securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MEAN WELL NPB75012?
You can click on the BUY or RFQ button to purchase NPB75012 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part NPB75012?
You can download the NPB75012 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of NPB75012?
MEAN WELL
