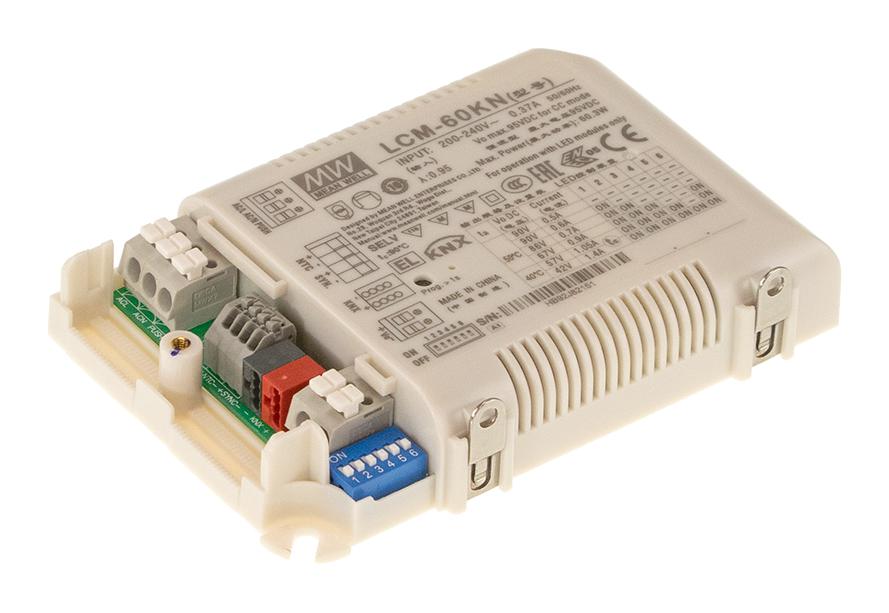

MEAN WELL LCM60KN LED Driver
The LCM-60KN series is a reliable 60W LED driver designed for various outdoor and architectural lighting applications. It features multiple selectable current levels from 500mA to 1400mA, high efficiency up to 91%, and a fanless construction for temperature ranges from -30°C to +90°C. With integrated KNX interface, push dimming, synchronization for up to 10 units, and advanced protections including overvoltage and overtemperature shutdown, this driver ensures stable performance in demanding environments. Ideal for LED signage, panel, and street lighting systems requiring flexible, energy-efficient power solutions.
MEAN WELL LCM60KN LED Driver Specifications:
- Output Power: 60W
- Output Current Levels: 500mA, 600mA, 700mA (default), 900mA, 1050mA, 1400mA
- Voltage Range: 2~90V
- Rated Power: 60.3W
- Efficiency: Up to 91%
- Input Voltage: 180~295VAC
- Frequency Range: 47~63Hz
- Total Harmonic Distortion: compliant with EMC standards
- Inrush Current: 20A at 230VAC
- Dimensions: 123.5mm x 81.5mm x 23mm
- Protections: Over voltage, over temperature, short circuit
- Operating Temperature: -30°C to +90°C
- Humidity: 20% to 90% RH non-condensing
- Safety Standards: ENEC EN61347-1, EN61347-2-13, EN62384
- Certification: KNX protocol certified
- Additional features: Dimming, synchronization, temperature compensation via NTC sensor
Buy the Mean Well Series LED Driver: 60W Multiple-Stage Constant Current Mode LCM-60KN
Discover the high-performance 60W LED driver with multiple current settings and KNX control capability. Engineered for outdoor and architectural lighting, it offers up to 91% efficiency and a wide temperature range from -30°C to +90°C. Its fanless design ensures quiet operation, while integrated protections provide reliability in demanding environments. Perfect for signage, panel, and street lighting, this driver supports dimming, synchronization for up to 10 units, and temperature compensation via NTC sensors. Buy online now for a versatile, energy-efficient lighting solution.
Order your Mean Well Series LED Driver 60W LCM-60KN today and ensure dependable, energy-efficient lighting for your outdoor and architectural projects.
Frequently Asked Questions
Where can I buy MEAN WELL LCM60KN?
You can click on the BUY or RFQ button to purchase LCM60KN from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part LCM60KN?
You can download the LCM60KN datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of LCM60KN?
MEAN WELL
