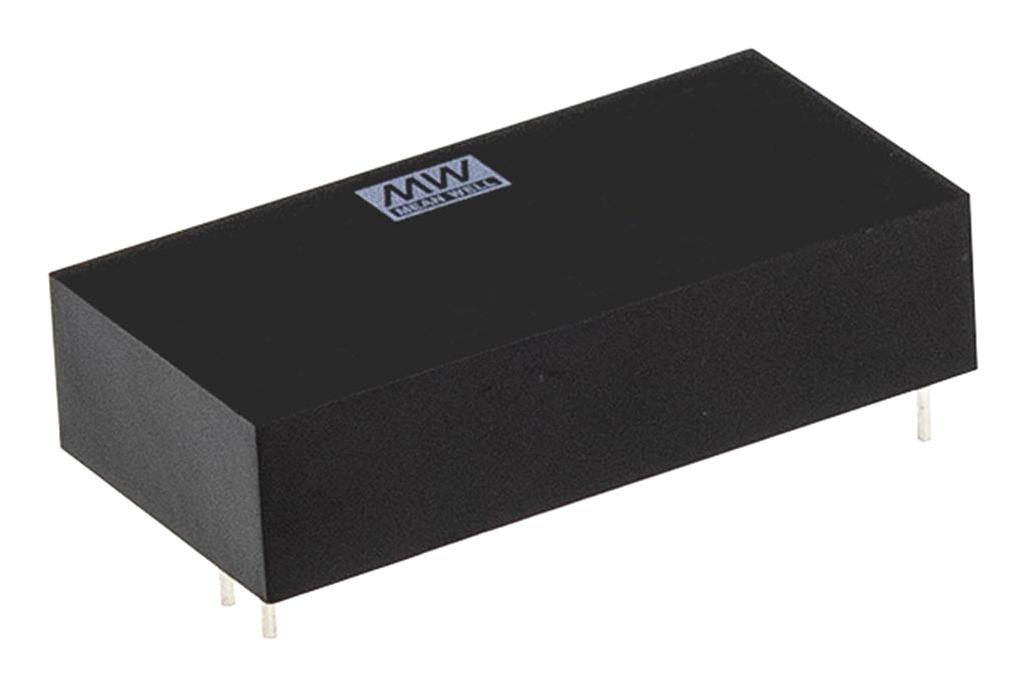

MEAN WELL MDS15C12 Medical Grade DC-DC Converter
The MDS15 series offers a medical-grade DC-DC converter providing 15W power in a compact 2x1-inch package. It features wide input voltages from 9V to 75V, up to 88% efficiency, and complies with IEC60601-1 safety standards, including 2xMOPP insulation. Designed for medical applications such as monitoring devices and imaging equipment, it offers high isolation (4000VAC), low leakage current, and temperature operation from -40°C to +90°C. It includes overload, short circuit, and under-voltage protections, with no minimum load required, making it reliable and safe for sensitive medical systems.
MEAN WELL MDS15C12 Medical Grade DC-DC Converter Specifications:
- Input Voltage Range: 9~18V, 18~36V, 36~75V
- Output Voltage Options: 5V, 12V, 15V, 24V
- Rated Power: 15W
- Efficiency: Up to 88%
- Isolation Voltage: 4000VAC high I/O isolation
- Operating Temperature: -40°C to +90°C
- Protection: Short circuit (continuous), Overload (110-185%), Input under voltage
- Leakage Current: <5μA
- Dimensions: 50.8mm x 25.4mm x 12mm
- Compliance: IEC60601-1 medical safety standard, 2xMOPP
- Soldering Temp: Max 260°C for 1-3 seconds
- Humidity: 20% to 90% RH non-condensing
- Vibration: 10-500Hz, 2G for 60 min each axis
- Certifications: UL94V-0 plastic case, EAC TP TC 004
Buy the Buy Mean Well MDS15C12 Medical Grade DC-DC Converter Part Number MDS15C12 Online
Order the Mean Well MDS15C12 medical-grade 15W DC-DC converter online today. Its compact design, high efficiency, and IEC60601-1 safety approval make it ideal for medical equipment, imaging systems, and patient monitoring devices. Featuring a wide input range of 9 to 75V, high insulation voltage of 4000VAC, and low leakage current, this reliable power supply ensures safety and performance in sensitive environments. Enjoy seamless online purchasing, fast delivery, and technical support for all your medical power needs.
Buy Mean Well MDS15C12 now and experience unmatched reliability and performance in medical power applications.
Frequently Asked Questions
Where can I buy MEAN WELL MDS15C12?
You can click on the BUY or RFQ button to purchase MDS15C12 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MDS15C12?
You can download the MDS15C12 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MDS15C12?
MEAN WELL
